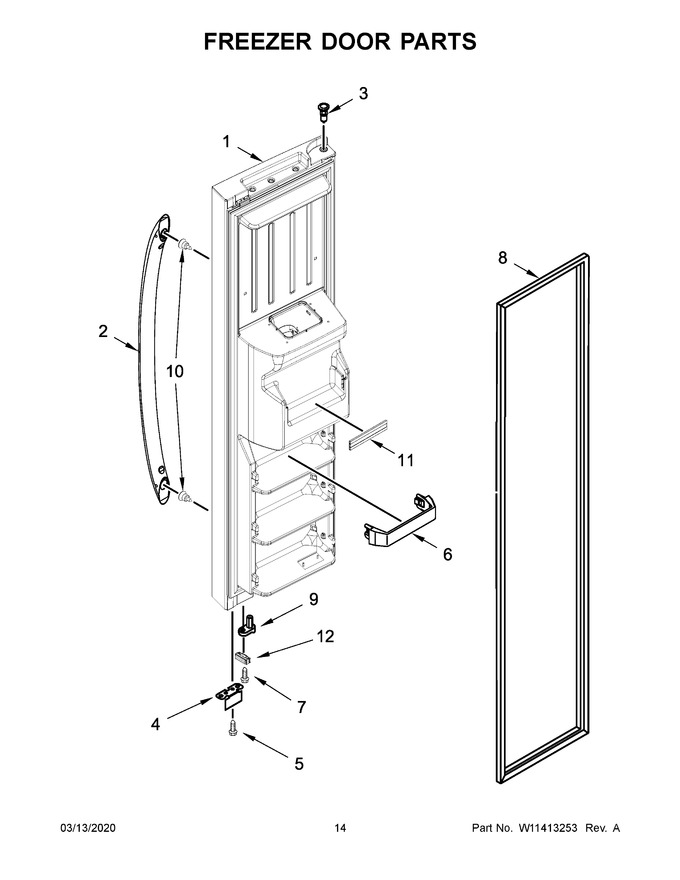

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW11025560		Door, Freezer (includes Door Gasket And Dispenser Parts) (white)   (Replaces: W11025560)		Appelez-nous	-
2	W11163764		Handle (stainless)   (Replaces: W11045530)			Immediately	$ 151.77
3	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
4	W11557261		Bracket, Door Stop (black)   (Replaces: W10900531)			Immediately	$ 18.67
5	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
6	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
7	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
8	2159075		Gasket, Door (beige)   (Replaces: W10911412)			Immediately	$ 333.00
9	W11661926		Thimble, Cam   (Replaces: W10900532)				$ 14.02
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
11	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
12	W11687672		Bumper, Door (white)   (Replaces: W10407175)				$ 14.93
12A	W10407187		Bumper, Door (black)				$ 48.34
12B	W10407203		Bumper, Door (biscuit)		Appelez-nous	-
12C	W11573367		Bumper, Door (grey)   (Replaces: W10407188)			Immediately	$ 23.35
1A	LW11025561		Door, Freezer (includes Door Gasket And Dispenser Parts) (black)   (Replaces: W11025561)		Appelez-nous	-
1B	LW11025562		Door, Freezer (includes Door Gasket And Dispenser Parts) (biscuit)   (Replaces: W11025562)		Appelez-nous	-
1C	LW11255360		Door, Freezer (includes Door Gasket And Dispenser Parts) (stainless)   (Replaces: W11255360)		Appelez-nous	-
2A	W11432251		Handle (white)   (Replaces: W11045527)				$ 189.72
2B	W11450221		Handle (black)   (Replaces: W11289638)				$ 189.65
2C	W11423779		Handle (biscuit)   (Replaces: W11289636)		Appelez-nous	-
8A	2159083		Gasket, Door (black)   (Replaces: W10911422)				$ 251.49
8B	WPW10136734		Gasket, Door (grey)   (Replaces: W10911389)				$ 335.39
