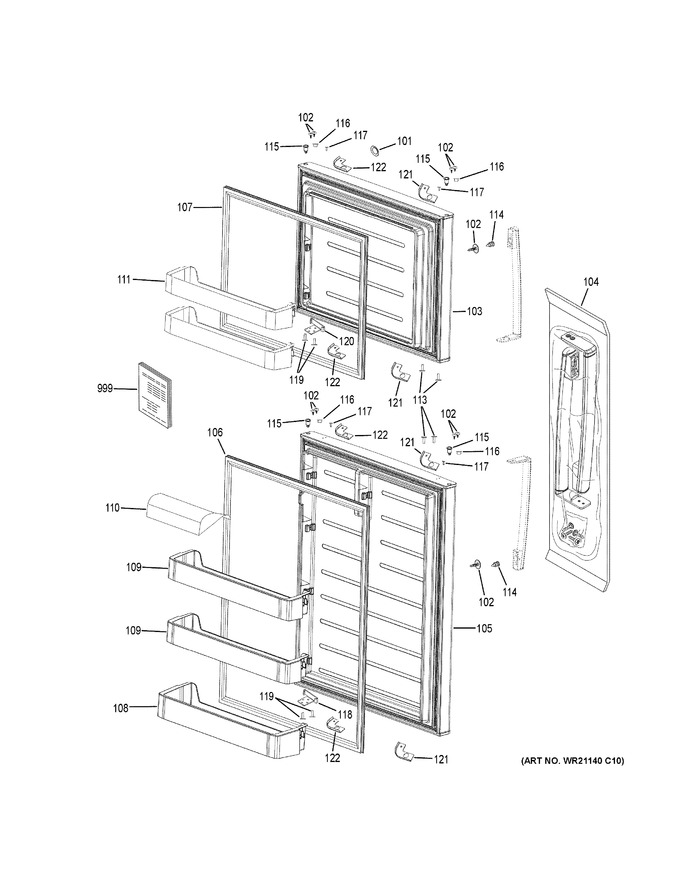

SELECT A DIAGRAM

Doors


Freezer Section


Fresh Food Section


Ice Maker


Machine Compartment


Shelves & Drawers


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WR04X10222		Badge Asm Ge		Appelez-nous	-
102	WR02X21242		Plug Door Rvsbl				$ 1.15
103	WR78X30506		Refrigerator - Freezer Door Stainless St		Appelez-nous	-
104	WR12X26870		Handle Pack Ss		Appelez-nous	-
105	WR78X30510		Refrigerator - Fresh Food Door Stainless		Appelez-nous	-
106	WR14X31069		Fresh Food Door Gasket Dorian Gray		Appelez-nous	-
107	WR14X31068		Freezer Door Gasket Dorian Gray		Appelez-nous	-
108	WR71X27452		Fresh Food Door - Gallon Bin White				$ 192.33
109	WR71X27449		Fresh Food Door - Rail Bin White		Appelez-nous	-
110	WR71X27451		Fresh Food Door - Dairy Bin Cover		Appelez-nous	-
111	WR71X27450		Fresh Food Door Rail Bin		Appelez-nous	-
113	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-
114	WR01X28657		Refrigerator Handle Mount		Appelez-nous	-
115	WR02X27454		Door Thimble Dorian Gray		Appelez-nous	-
116	WR02X21663		Plug Button Thimble		Appelez-nous	-
117	WR01X27330		Screw #8 X 9/16"		Appelez-nous	-
118	WR01X27349		Fresh Food Door Stop		Appelez-nous	-
119	WR01X27336		Screw Ph St 3.9x19		Appelez-nous	-
120	WR01X27350		Freezer Door Stop		Appelez-nous	-
121	WR02X27411		Door Cap Left Corner Dorian Gray		Appelez-nous	-
122	WR02X27410		Door Cap Right Corner Dorian Gray		Appelez-nous	-
999	31-50955		Pm Mini Manual Wiring		Appelez-nous	-
999	49-60780		Pm Owners Manual		Appelez-nous	-
