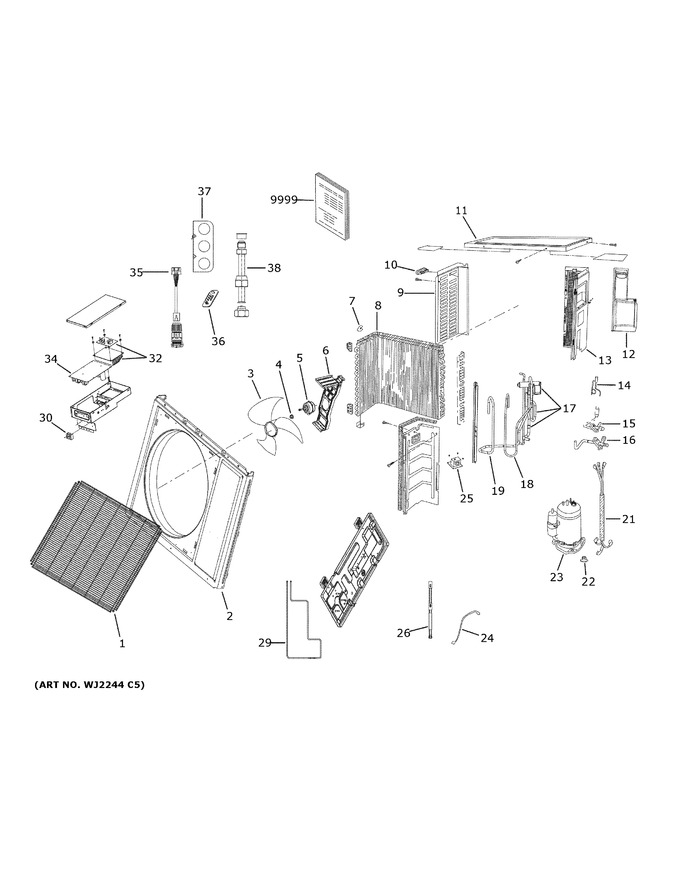

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X26474 | Grille |
|
- | |||||
| 2 | WJ76X26484 | Casing |
|
- | |||||
| 3 | WJ73X23014 | Fan Blade |
|
- | |||||
| 4 | WJ01X22974 | Flange Nut |
|
- | |||||
| 5 | WJ94X23000 | Outdoor Fan Motor |
|
$ 480.59 | |||||
| 6 | WJ65X23015 | Outdoor Fan Motor Bracket |
|
- | |||||
| 7 | WJ01X23219 | Sensor Clip |
|
- | |||||
| 8 | WJ88X26444 | Condenser |
|
- | |||||
| 9 | WJ71X26485 | Left Side Panel |
|
- | |||||
| 10 | WJ01X26475 | Handle |
|
- | |||||
| 11 | WJ76X26486 | Top Cover |
|
- | |||||
| 12 | WJ76X26477 | Valve Cover |
|
- | |||||
| 13 | WJ71X26487 | Right Side Panel |
|
- | |||||
| 14 | WJ53X26445 | Eev Valve |
|
- | |||||
| 15 | WJ53X24973 | Liquid Service Valve |
|
- | |||||
| 16 | WJ53X24975 | Vapor Service Valve |
|
- | |||||
| 17 | WJ53X24702 | 4-way Valve Tube Assembly |
|
- | |||||
| 18 | WJ53X25636 | Discharge Tube |
|
- | |||||
| 19 | WJ53X23020 | Suction Tube |
|
- | |||||
| 21 | WJ35X26440 | Outdoor Wire Harness |
|
- | |||||
| 22 | WJ01X26442 | Compressor Nut |
|
- | |||||
| 23 | WJ98X23021 | Compressor |
|
- | |||||
| 24 | WJ26X23009 | Suction Sensor |
|
$ 22.15 | |||||
| 25 | WJ27X23006 | Reactor |
|
- | |||||
| 26 | WJ27X26437 | Compressor Heater |
|
- | |||||
| 29 | WJ27X23172 | Pan Heater |
|
- | |||||
| 30 | WJ27X26435 | Terminal Block |
|
- | |||||
| 32 | WJ26X26479 | Inverter Assembly |
|
- | |||||
| 34 | WJ26X26463 | Outdoor Power Control Board |
|
- | |||||
| 35 | WJ27X27115 | Rj45 |
|
- | |||||
| 36 | WJ76X27114 | Cover |
|
- | |||||
| 37 | WJ65X27113 | Strain Relief Bracket |
|
- | |||||
| 38 | WJ01X27116 | 1/2" X 3/8" Adapter |
|
- | |||||
| 9999 | 31-5000276 | Pm Install Instructions |
|
- |
