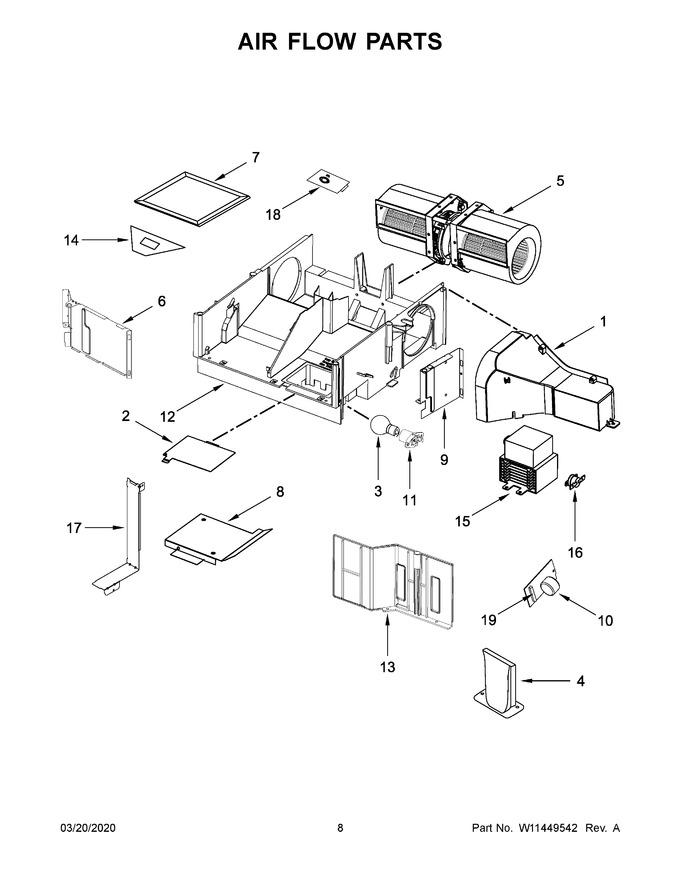

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 9.17 | |||||
| 3 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 7.71 | ||||
| 4 | W11381953 | Plate, Waterproof |
|
- | |||||
| 5 | W11441128 | Motor, Hood Fan (Replaces: W11409094) |
|
Immediately | $ 222.23 | ||||
| 6 | W10827799 | Plate, Air Guide Sealing |
|
- | |||||
| 7 | W10892387 | Filter, Charcoal (Replaces: W10845250) |
|
Immediately | $ 17.72 | ||||
| 8 | W10845672 | Guide, Air |
|
- | |||||
| 9 | W10828079 | Cover, Right Duct |
|
- | |||||
| 10 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 56.88 | ||||
| 11 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 34.87 | ||||
| 12 | W10828030 | Baseplate, Air Guide |
|
$ 107.01 | |||||
| 13 | W10342991 | Shield, Finger |
|
$ 169.83 | |||||
| 14 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 15 | W10754299 | Magnetron |
|
Immediately | $ 231.21 | ||||
| 16 | W11224803 | Thermostat, Magnetron |
|
$ 84.44 | |||||
| 17 | W10828038 | Cover, Airguide Inlet |
|
- | |||||
| 18 | W11590866 | Sensor, Humidity (Replaces: W11381423) |
|
$ 70.78 | |||||
| 19 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 |
