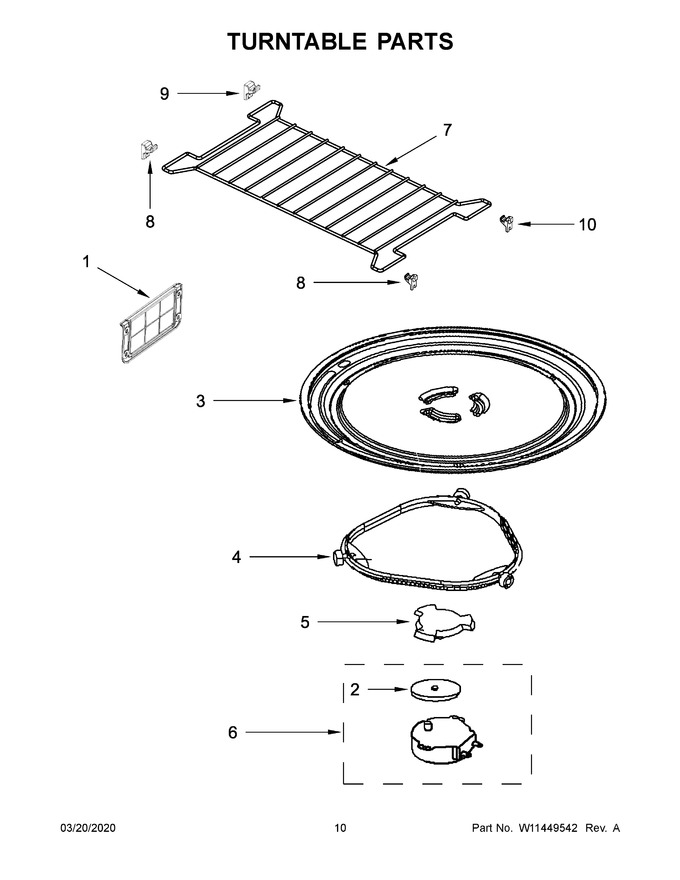

06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10313272 | Cover, Waveguide |
|
Immediately | $ 36.02 | ||||
| 2 | 8184109 | Seal, Waterproof |
|
$ 7.30 | |||||
| 3 | W11367904 | Turntable (Replaces: W11335034) |
|
Immediately | $ 72.89 | ||||
| 4 | W11252182 | Ring, Turntable (with Rollers) (Replaces: W11193600) |
|
Immediately | $ 39.55 | ||||
| 5 | W11245707 | Driver, Turntable (Replaces: W11193599) |
|
Immediately | $ 87.61 | ||||
| 6 | W10642989 | Motor, Turntable |
|
Immediately | $ 199.95 | ||||
| 7 | W10803366 | Rack, Microwave (Replaces: W10637159) |
|
$ 30.40 | |||||
| 8 | W10840759 | Hook, Microwave Rack (front) (Replaces: W10245207) |
|
- | |||||
| 9 | W10840794 | Hook, Microwave Rack (left Rear) (Replaces: W10245208) |
|
$ 24.76 | |||||
| 10 | W10840795 | Hook, Microwave Rack (right Rear) (Replaces: W10245209) |
|
$ 26.04 |
