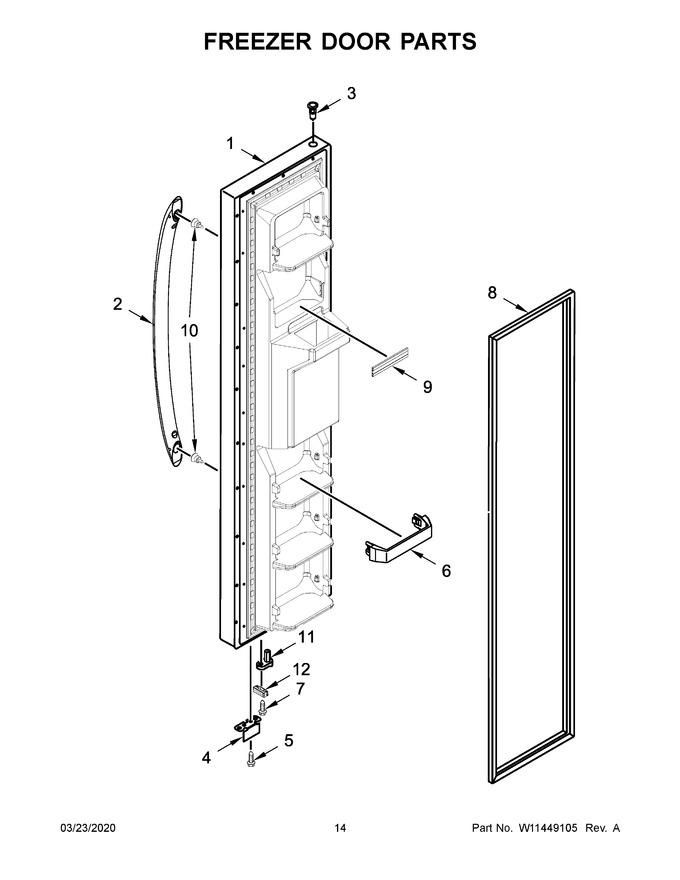

08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW11025546		Door, Freezer (includes Door Gasket) (white)   (Replaces: W11025546)		Appelez-nous	-
2	W11432251		Handle (white)   (Replaces: W11289637)				$ 189.72
3	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
4	W11557261		Bracket, Door Stop (black)   (Replaces: W10900531)			Immediately	$ 18.67
5	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
6	WP2309717		Trim, Door   (Replaces: 2309717)				$ 58.64
7	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
8	2159072		Gasket, Door (beige)   (Replaces: W10911494)				$ 323.60
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307492)			Immediately	$ 24.27
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
11	W11661926		Thimble, Cam   (Replaces: W10900532)				$ 14.02
12	W11687672		Bumper, Door (white)   (Replaces: W10407175)				$ 14.93
12A	W10407187		Bumper, Door (black)				$ 48.34
12B	W10407203		Bumper, Door (biscuit)		Appelez-nous	-
1A	LW11025545		Door, Freezer (includes Door Gasket) (black)   (Replaces: W11025545)		Appelez-nous	-
1B	LW11025547		Door, Freezer (includes Door Gasket) (biscuit)   (Replaces: W11025547)		Appelez-nous	-
2A	W11450221		Handle (black)   (Replaces: W11289638)				$ 189.65
2B	W11423779		Handle (biscuit)   (Replaces: W11289636)		Appelez-nous	-
8A	2159080		Gasket, Door (black)   (Replaces: W10911504)				$ 325.91
