01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

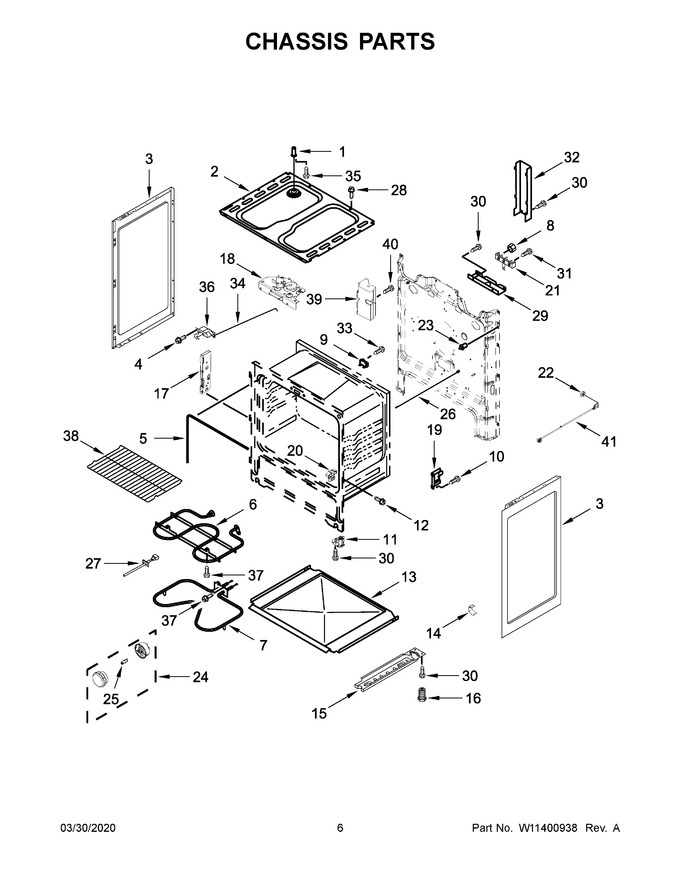

| 1 | W11222268 | Vent Tube |
|
$ 104.30 | |||||
| 2 | W11699791 | Box, Burner (Replaces: W10209613) |
|
$ 262.30 | |||||
| 3 | WPW10575396 | Panel, Side (white) (Replaces: W10575396) |
|
$ 148.71 | |||||
| 4 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 5 | W11542153 | Seal, Door (Replaces: W10658354) |
|
Immediately | $ 50.20 | ||||
| 6 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 154.62 | ||||
| 7 | W11182108 | Element, Bake (Replaces: W11022836) |
|
Immediately | $ 92.65 | ||||
| 8 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 9 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 11 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 13 | WP8054068 | Retainer, Insulation (Replaces: 8054068) |
|
$ 104.36 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 18 | WPW10107820 | Assembly, Door Latch (rear) (Replaces: W10107820) |
|
$ 309.55 | |||||
| 19 | W10404688 | Clip, Oven Support |
|
$ 17.69 | |||||
| 20 | W10807823 | Glide, Drawer Front (Replaces: W10674705) |
|
Immediately | $ 19.30 | ||||
| 21 | WP8203546 | Block, Terminal (Replaces: W10246624) |
|
Immediately | $ 30.13 | ||||
| 22 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 23 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 144.44 | ||||
| 24 | W11594027 | Assembly, Light (Replaces: W11175594) |
|
Immediately | $ 87.01 | ||||
| 25 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 26 | W11370462 | Rod, Door Switch |
|
$ 67.63 | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 28 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 29 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 30 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 31 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 32 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 139.60 | |||||
| 33 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 34 | W10078380 | Rod, Latch |
|
$ 94.91 | |||||
| 35 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 8.06 | |||||
| 36 | WP9761013 | Assembly, Door Latch (front) (Replaces: 9761013) |
|
$ 256.36 | |||||
| 37 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 38 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 39 | W11135752 | Counterweight (Replaces: W10910404) |
|
Immediately | $ 153.79 | ||||
| 40 | W11135756 | Screw (Replaces: W11034869) |
|
$ 14.73 | |||||
| 41 | W11226497 | Cord, Power (Replaces: W10624591) |
|
Immediately | $ 72.99 | ||||
| 15A | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| NI | W11311894 | Insulation, Back (Replaces: W11127325) |
|
$ 115.11 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11161831 | Insulation, Wrap (Replaces: W10774939) |
|
Immediately | $ 116.41 |
