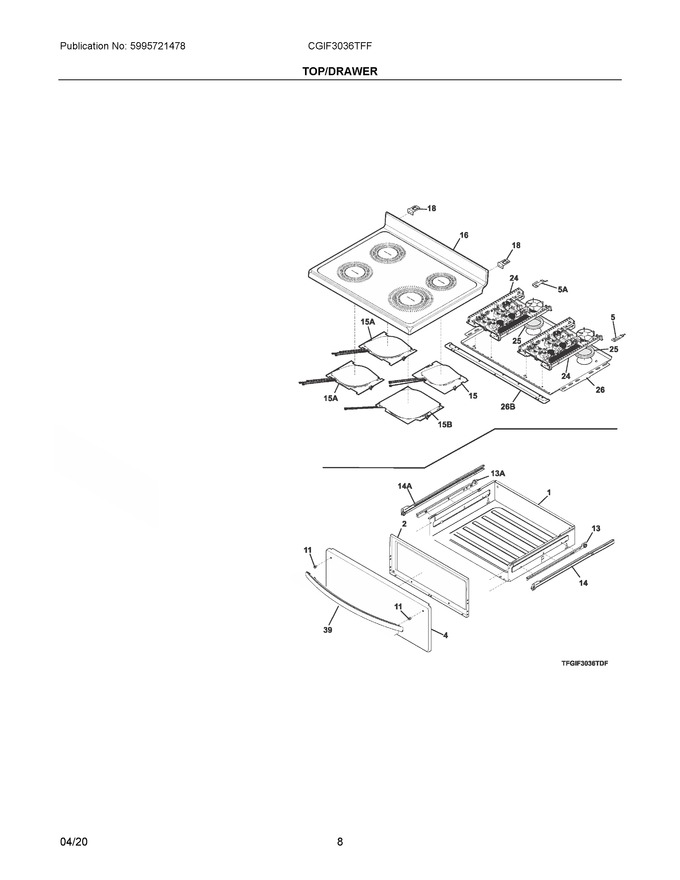

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 122.90
2	5304511827		Liner, Drawer		Appelez-nous	-
4	5304518011		Panel, Drawer, Stainless			Immediately	$ 178.75
5	5304511076		Bracket, Cooktop, Rh Rear		Appelez-nous	-
11	5304517906		Bracket, Rear Support, (2)				$ 12.64
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 18.54
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 28.65
15	387404760		Element Assembly, Induction Coil, 140mm, Rh Rear   (Replaces: 387404759)			Immediately	$ 96.47
16	5304511258		Smoothtop Assembly, Glass, Black				$ 635.34
18	316580800		Bracket-hinge, Main Top			Immediately	$ 10.95
24	5304531890		Generator Assembly, Circuit Board   (Replaces: 5304516063)			Immediately	$ 176.51
25	316302203		Seals, Ring, Fans, (2)				$ 20.58
26	5304511074		Panel, Induction Mtg.				$ 55.18
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 187.16
60	5303288572		Screw-handle Mtg		Appelez-nous	-
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 32.19
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 53.31
15A	387404870		Element Assembly, Induction Coil, 180mm, Lh Rear/front   (Replaces: 387404866)			Immediately	$ 94.40
15B	387761249		Element Assembly, Induction Coil, 210mm, Rh Front   (Replaces: 387761248)			Immediately	$ 117.98
26B	316607600		Bracket, Chassis Support, Front				$ 58.14
5A	5304511075		Bracket, Cooktop, Lh Rear				$ 4.73
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	5304517544		Harness, Communication				$ 49.60
NI	5304517540		Harness, Wiring, Surface				$ 69.27
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
