SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door

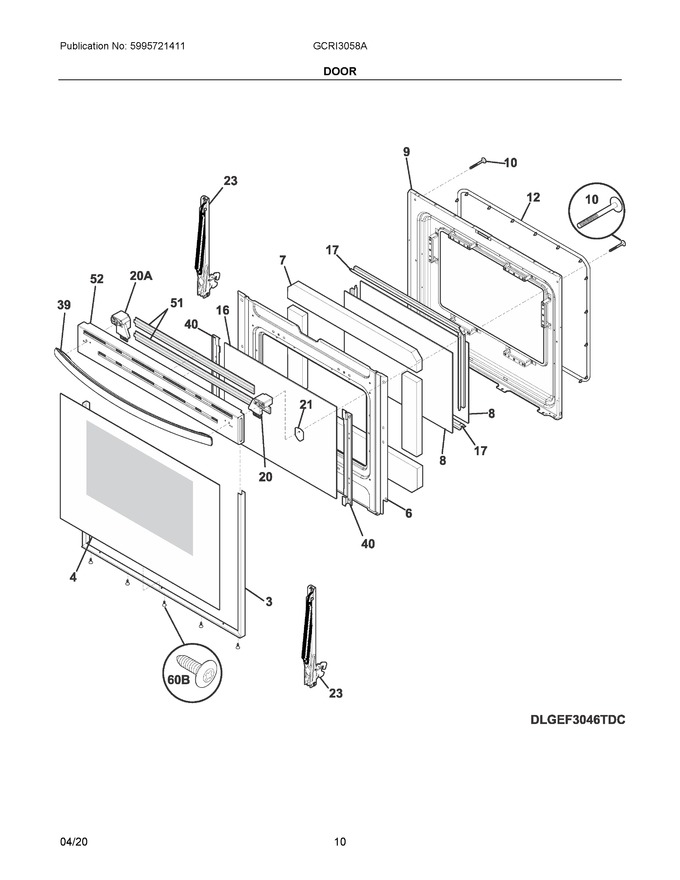

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 64.58
4	316355602		Glass, Door, Black, W/foil   (Replaces: 316355601)				$ 239.58
6	316406328		Shield-wool   (Replaces: 316406312)				$ 96.90
7	316405600		Insulation, Oven Door				$ 85.05
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 129.94
9	316423715		Liner, Oven Door		Appelez-nous	-
10	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 18.31
12	316405000		Seal, Oven Door			Immediately	$ 199.08
16	316552801		Glass, Door, Airwash				$ 42.14
17	5304504811		Spacer, Glass			Immediately	$ 27.80
20	316353004		Spacer, Door, Rh				$ 30.33
21	316533801		Plate, Distribution, Load			Immediately	$ 6.30
23	5304522696		Hinge, Door, Dual Spring			Immediately	$ 85.10
39	5304532118		Handle, Door/drawer, Stainless   (Replaces: 5304518029)				$ 125.42
40	316552401		Bracket, Airwash Glass, (2)				$ 32.03
51	316355300		Insulation, Door, Top Cap				$ 8.43
52	5304518016		Door Cap, Assembly, Stainless, Insul & Spacers			Immediately	$ 260.37
20A	316353005		Spacer, Door, Lh				$ 30.33
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
7A	5304518033		Insulation, Door Liner, Top				$ 50.56
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	316483102		Label, Anti-tip				$ 3.95
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NIA	318165800		Spacer, Glass, Foam				$ 19.69
NIA	316355100		Insulation, Flue/side/door		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75

    View Diagram in Separate Window       Print Part List
