01 - Cover Sheet


02 - Top And Cabinet Parts

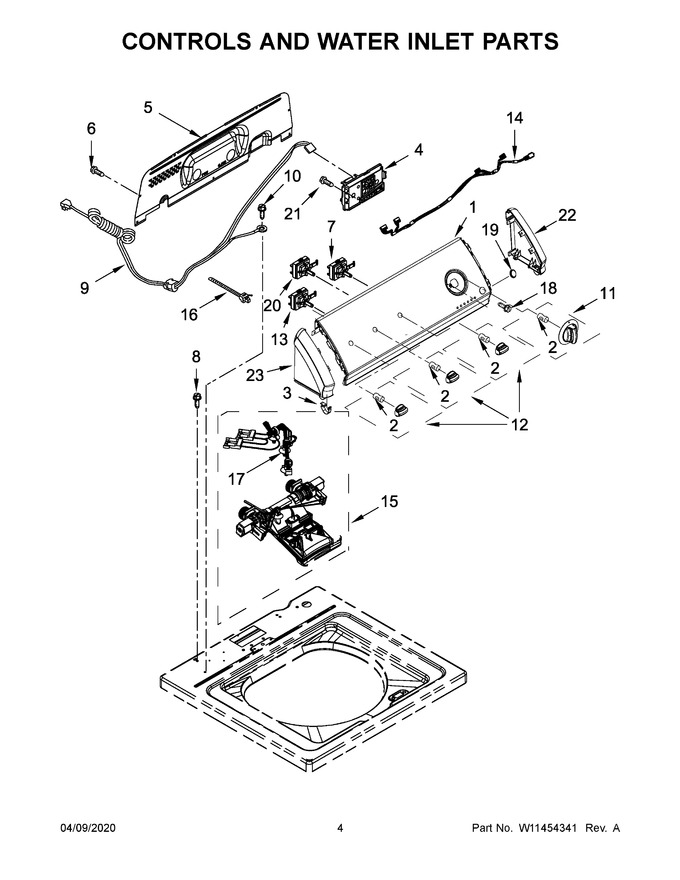

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11458351		Panel, Console   (Replaces: W11409029)		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
4	W11498193		Control Unit Assembly, Machine And Motor   (Replaces: W11428281)		Appelez-nous	-
5	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
6	W11685943		Screw   (Replaces: W10660565)				$ 14.97
7	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 190.47
8	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
9	W10877409		Cord, Power   (Replaces: W10737739)				$ 130.00
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
11	W10317457		Knob, Timer (grey)		Appelez-nous	-
12	W10317458		Knob, Control (grey)		Appelez-nous	-
13	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 117.42
14	W10694671		Harness, Upper				$ 190.60
15	W11038689		Inlet Assembly, Water   (Replaces: W10869800)			Immediately	$ 81.37
16	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 8.30
17	W10868094		Harness, Valve				$ 186.11
18	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
19	W10272474		Pushbutton, Start		Appelez-nous	-
20	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 182.10
21	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
22	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 72.77
23	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 72.99
