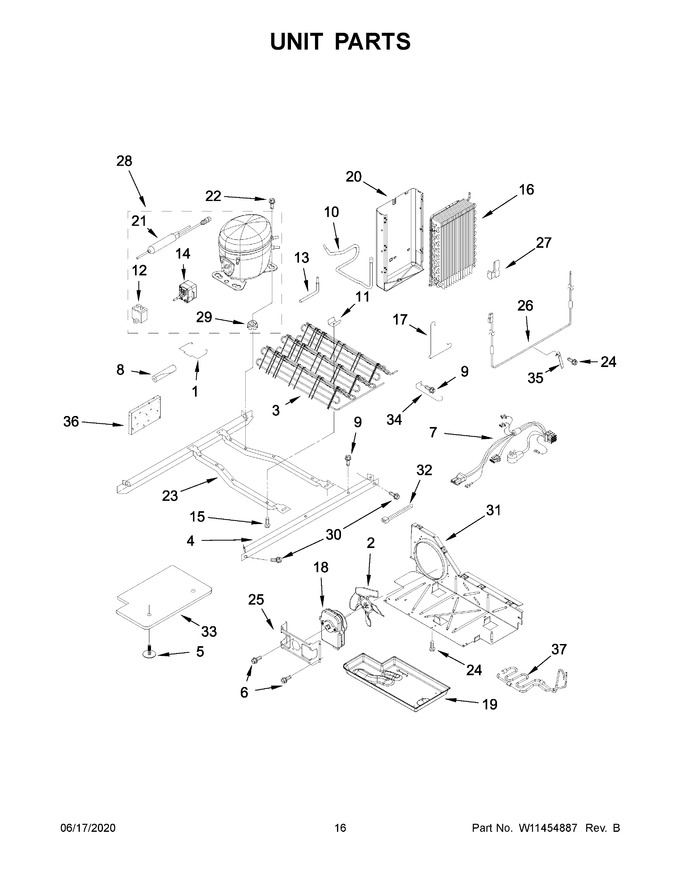

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661170		Strap, Bale   (Replaces: W10174384)			Immediately	$ 11.87
2	W11458267		Blade, Fan   (Replaces: 2225834)			Immediately	$ 25.19
3	W11632924		Assembly, Condenser   (Replaces: W10904626)			Immediately	$ 237.55
4	W10900442		Rail, Unit Mounting		Appelez-nous	-
5	489396		Clip				$ 11.26
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	W11673314		Harness, Unit (includes Power Cord)   (Replaces: W11229008)				$ 105.59
8	2264838		Sleeve				$ 92.28
9	WP489427		Screw   (Replaces: 489427)				$ 7.84
10	W11183387		Tube, Suction				$ 78.86
11	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 19.38
12	WPW10350564		Capacitor   (Replaces: W10350564)			Immediately	$ 99.49
13	W11676464		Tube, Process   (Replaces: W11239207)				$ 108.61
14	WPW10197428		Device, Combination Start (start Relay And Overload)   (Replaces: W10197428)			Immediately	$ 89.21
15	W11544659		Screw   (Replaces: 8281232)				$ 14.35
16	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
17	2161324		Clip, Defrost Heater		Appelez-nous	-
18	W11578915		Motor, Condenser Fan   (Replaces: W10522629)			Immediately	$ 71.42
19	W11678304		Tray, Evaporator   (Replaces: W10897557)				$ 57.39
20	W10194475		Assembly, Heat Shield And Drain Pan		Appelez-nous	-
21	WPW10143759		Drier   (Replaces: W10771114)			Immediately	$ 30.78
22	W11417341		Screw   (Replaces: W10476309)				$ 14.07
23	W10900445		Frame, Unit Mounting		Appelez-nous	-
24	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
25	WP2181929		Bracket, Fan Mounting   (Replaces: 2181929)				$ 12.93
26	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
27	2161324		Clip, Defrost Heater		Appelez-nous	-
28	W10233960		Compressor   (Replaces: W10879296)			Immediately	$ 539.34
29	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
30	489340		Bolt		Appelez-nous	-
31	W10896764		Baffle, Air   (Replaces: W10897567)				$ 101.20
32	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
33	W10897560		Assembly, Unit Cover (bottom)				$ 101.57
34	1110663		Guard, Fan		Appelez-nous	-
35	W11611126		Probe, Heat   (Replaces: W10895163)				$ 23.16
36	W11553819		Insulation, Sound Deadening   (Replaces: 2169104)			Immediately	$ 14.77
37	W11678305		Assembly, Precooler Formed   (Replaces: W11189542)				$ 66.63
NI	N/P		Refrigerant Charge 5.5 Oz (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access (1/4")   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16")			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8")   (Replaces: 978027)				$ 21.64
NI	978029		Valve, Access (5/8")				$ 93.85
NI	978030		Valve, Access (3/4")				$ 137.25
NI	876764		Valve, Access (3/16")			Immediately	$ 95.92
