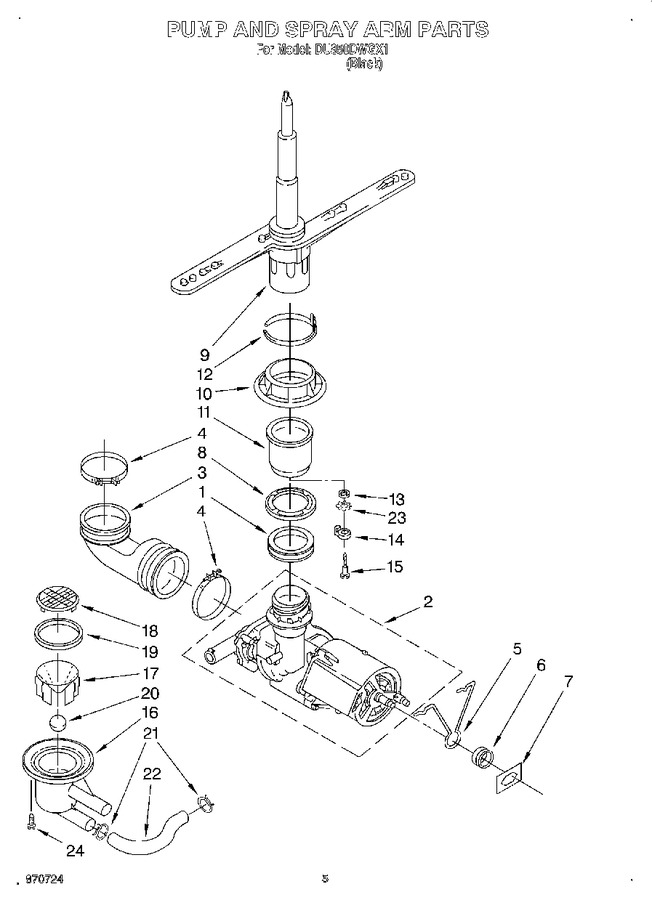

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3369037		Grommet, Pump Seal				$ 28.33
2	3369015		Pump & Motor Assembly For Breakdown Of Pump Parts, Refer To Pump And Motor Parts Page		Appelez-nous	-
3	W11189178		Hose, Pump Inlet   (Replaces: 3369035)				$ 28.70
4	3369036		Clamp (2)		Appelez-nous	-
5	3369033		Support, Motor		Appelez-nous	-
6	3369032		Grommet, Motor Support		Appelez-nous	-
7	3370856		Push-nut, Motor Support				$ 5.58
8	3369038		Washer, Grommet				$ 12.83
9	3369010		Spray Arm, Assembly Lower		Appelez-nous	-
10	3369039		Nut, Pump Outlet		Appelez-nous	-
11	3371745		Support & Bearing Assembly (includes Items: 13, 14 & 15)				$ 38.01
12	WP3369045		Seal, Split Ring   (Replaces: 3369045)				$ 11.48
13	3369044		Washer		Appelez-nous	-
14	3371746		Bearing				$ 14.19
15	3371744		Shoulder Screw		Appelez-nous	-
16	3369175		Collector		Appelez-nous	-
17	3369176		Funnel				$ 5.65
18	3369326		Grate, Funnel				$ 5.65
19	WP3369177		Seal   (Replaces: 3369177)				$ 12.46
20	WP3369178		Ball, Check-valve   (Replaces: 3369178)				$ 11.56
21	371499		Clamp, Hose				$ 12.95
22	3369179		Hose, Collector		Appelez-nous	-
23	3371634		Washer, Curved				$ 5.33
24	3369181		Screw 10-16, Hi-lo (4)		Appelez-nous	-
