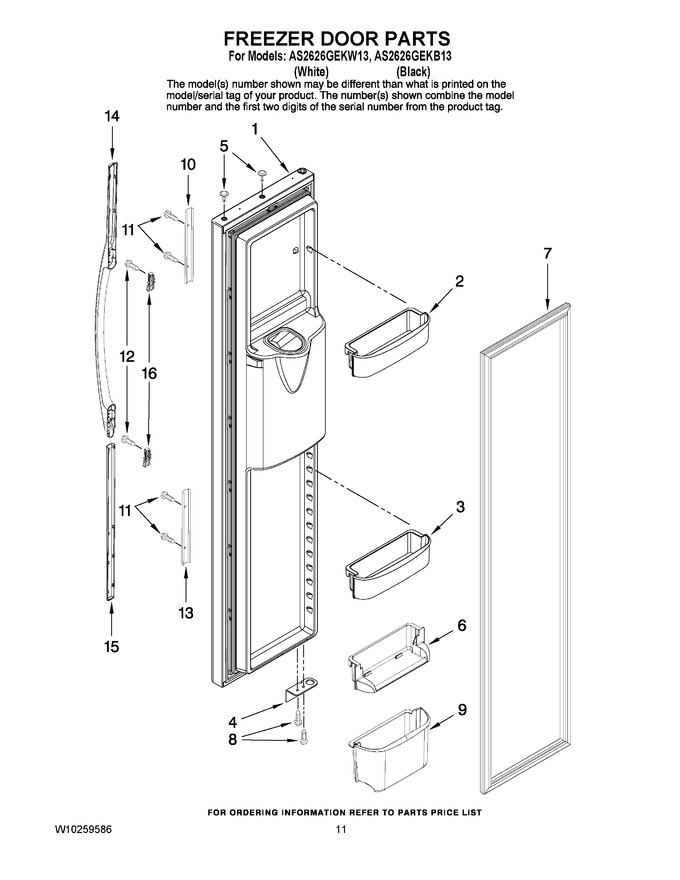

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13091903BQ		Door, Freezer (black)		Appelez-nous	-
1	13091902WQ		Door, Freezer (white)		Appelez-nous	-
2	67004772		Bucket, Upper		Appelez-nous	-
3	12557501		Bucket, Lower (1)				$ 17.64
4	67007020		Stop, Door (black)		Appelez-nous	-
4	67006478		Stop, Door (white)		Appelez-nous	-
5	M0311604		Plug, Button (black)		Appelez-nous	-
6	67004291		Frame, Tilt Bucket		Appelez-nous	-
7	W10133835		Gasket, Door (white)		Appelez-nous	-
7	W10133491		Gasket, Door (black)				$ 342.75
8	R9800670		Screw   (Replaces: M0223230)				$ 9.38
9	67004290		Bucket, Tilt		Appelez-nous	-
10	67004116		Cleat, Handle				$ 6.39
11	59002016		Screw		Appelez-nous	-
12	WP12992902		Screw, Shoulder   (Replaces: 67006282)				$ 11.07
13	67004117		Cleat, Handle				$ 6.47
14	W10119680		Handle (black)		Appelez-nous	-
14	WPW10119678		Handle (white)   (Replaces: W10119678)				$ 186.64
15	67004297		Trim, Handle (white)		Appelez-nous	-
15	67003814		Trim, Handle (black)		Appelez-nous	-
16	W10132420		Clip, Keyhole		Appelez-nous	-
