SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

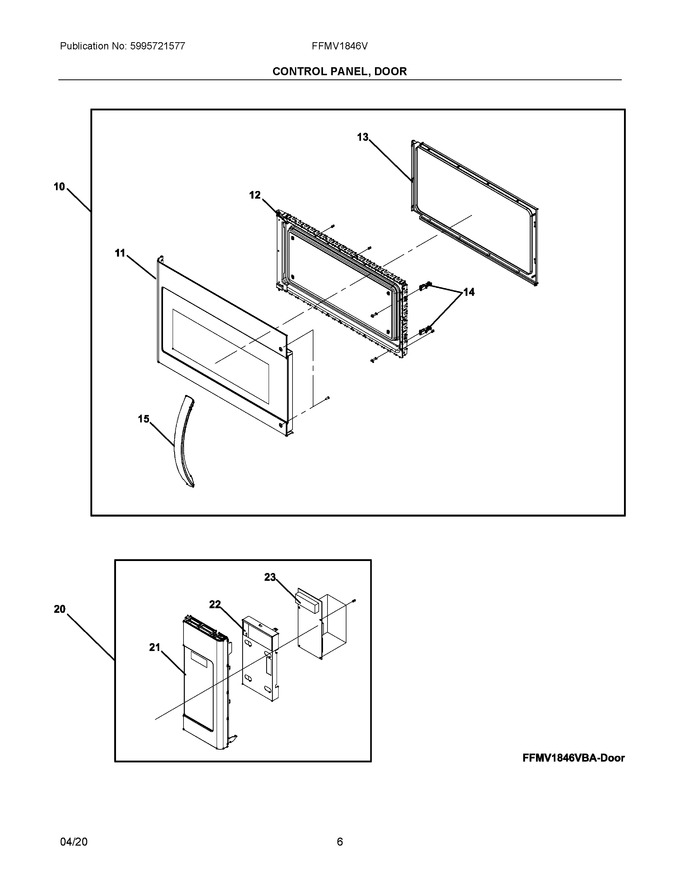

03 - Control Panel, Door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304523984		Door Assembly, Complete, Stainless				$ 654.00
11	5304523985		Door Assembly, Outer, Stainless				$ 307.27
12	5304523969		Frame, Door, Black			Immediately	$ 128.52
13	5304523970		Gasket, Door				$ 86.00
14	5304523249		Latch, Door				$ 9.74
15	5304523992		Handle, Door, Stainless				$ 227.46
20	5304523988		Control Panel, Assembly, Stainless, Complete, W/pcb			Immediately	$ 754.71
21	5304523989		Control Panel, Outer, Stainless, W/touch Pad			Immediately	$ 210.38
22	5304523973		Shield, Pc Board				$ 32.94
23	5304523974		Pc Board, Assembly, Control				$ 428.14
