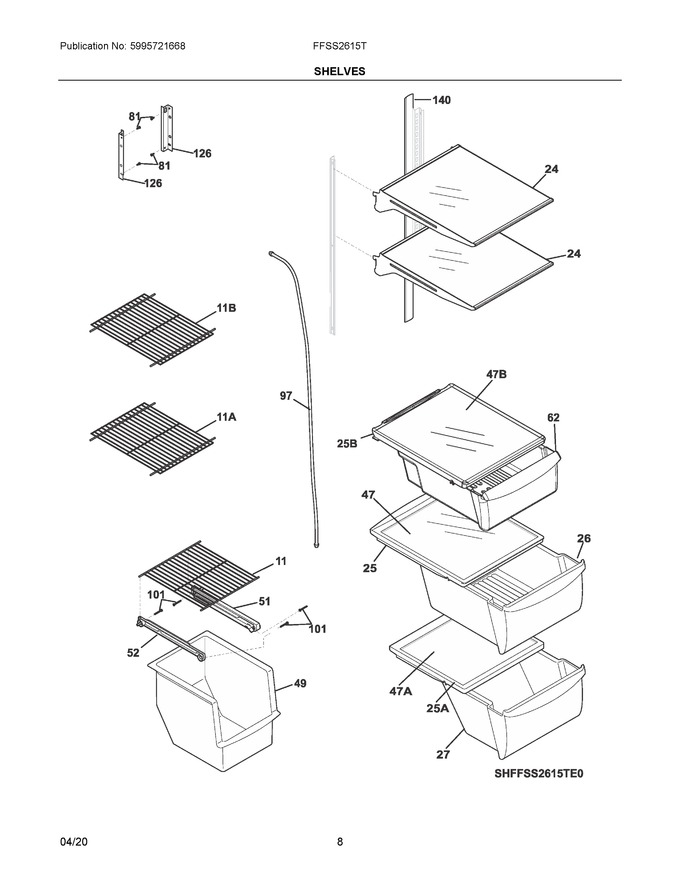

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241657602 | Shelf, Flip Up, Wire |
|
$ 96.06 | |||||
| 24 | 5304511775 | Shelf Assembly, Cantilever, Glass, 24, W/trim |
|
$ 192.12 | |||||
| 25 | 240350702 | Cover-crisper Pan, Upper |
|
Immediately | $ 46.58 | ||||
| 26 | 240351061 | Pan-crisper, Upper (Replaces: 240351007) |
|
Immediately | $ 122.23 | ||||
| 27 | 240351207 | Pan-crisper, Lower |
|
$ 193.04 | |||||
| 47 | 240350649 | Insert-pan Cover, Glass |
|
Immediately | $ 137.66 | ||||
| 49 | 240564401 | Basket-sliding |
|
Immediately | $ 176.56 | ||||
| 51 | 240343002 | Hanger-basket, Rh |
|
$ 72.47 | |||||
| 52 | 240343102 | Hanger-basket, Lh |
|
$ 77.52 | |||||
| 62 | 241969607 | Pan-meat |
|
$ 227.19 | |||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 97 | 242220208 | Tube-water Inlet, .315 - 97.50", Natural |
|
Immediately | $ 48.04 | ||||
| 101 | 218493101 | Screw, Hex Washer Head, 8-18ab X 1-3/4 |
|
$ 14.96 | |||||
| 126 | 241674401 | Channel, Auger Mtg, Lh |
|
$ 52.76 | |||||
| 140 | 241812502 | Channel, Wtr Tube Cover |
|
$ 76.97 | |||||
| 11A | 241657512 | Shelf, Fixed, Freezer (Replaces: 241657502) |
|
$ 18.74 | |||||
| 11B | 241657514 | Shelf, Fixed, Upper, Freezer (Replaces: 241657504) |
|
- | |||||
| 126A | 241674402 | Channel, Auger Mtg, Rh |
|
$ 48.04 | |||||
| 25A | 240350903 | Cover-crisper Pan, Lower |
|
$ 102.21 | |||||
| 25B | 241969501 | Cover-meat Pan |
|
Immediately | $ 106.90 | ||||
| 47A | 240350603 | Insert-pan Cover, Glass |
|
Immediately | $ 128.36 | ||||
| 47B | 240443384 | Insert-pan Cover, Glass |
|
$ 168.53 | |||||
| NIA | 240362101 | Clip-slide, Cover |
|
$ 52.25 | |||||
| NIA | 240349801 | Clip-slide, Pan |
|
$ 22.75 |
