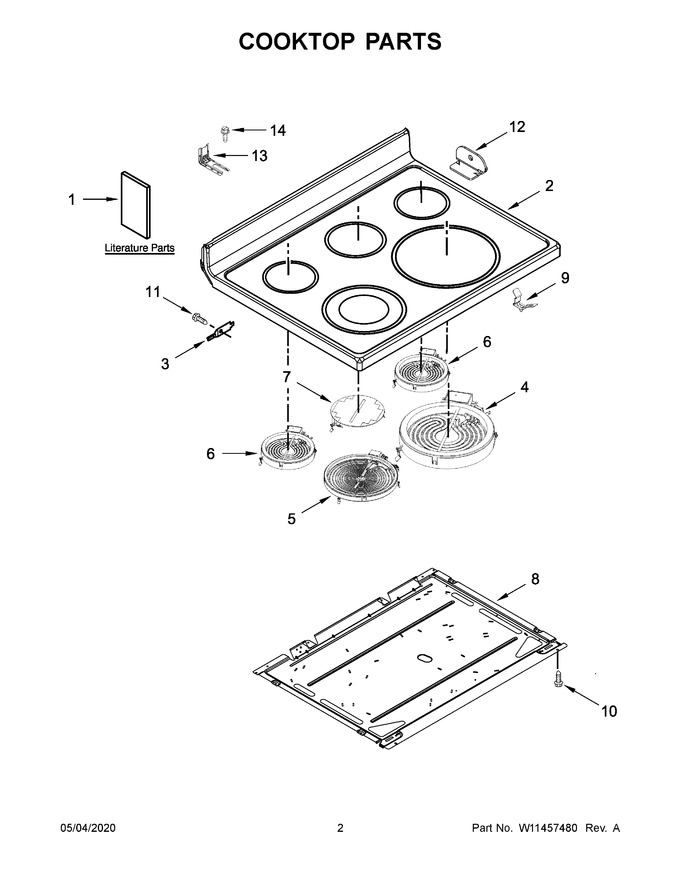

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403812		Installation Instructions		Appelez-nous	-
2	W10691698		Cooktop (black)   (Replaces: W10655916)			Immediately	$ 590.58
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
4	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 223.66
5	WPW10535150		Element (3000w, 1000/2000w) (left Front)   (Replaces: W10535150)			Immediately	$ 251.12
6	W11171119		Element (1200w) (right Rear And Left Rear)   (Replaces: 8273994)			Immediately	$ 182.23
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
10	WPW10241367		Screw   (Replaces: W10241367)				$ 6.27
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
12	W10607641		Bracket, Cooktop (left)				$ 33.52
13	W11839019		Anti-tip Bracket   (Replaces: W11379945)			Immediately	$ 28.54
14	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
12A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
1A	W11321346		Use And Care Guide		Appelez-nous	-
1B	W11321586		Wiring Diagram		Appelez-nous	-
1C	W10400064		Quick Start Guide		Appelez-nous	-
1D	W10400065		Quick Start Guide (french)		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 117.26
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11328421		Main Harness			Immediately	$ 219.21
NI	W11188418		Harness, Cooktop (left)				$ 223.37
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 214.26
NI	W11212183		Harness, Sensor				$ 235.64
