Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Seviceable Part) Appelez-nous -
2 WPW10318953 Shelf, Wire   (Replaces: W10318953) In-Stock Immediately $ 87.76

3 WP841180A Tray, Ice   (Replaces: 2151664) In-Stock Immediately $ 47.84

4 W11384469 Switch, Rocker Arm   (Replaces: 1118894) In-Stock Immediately $ 39.09

5 WPW10318952 Shelf, Wire   (Replaces: W10318952) In-Stock Immediately $ 92.48

6 WP2309758 Bin, Freezer   (Replaces: 2309758) In-Stock Immediately $ 130.69

7 WPW10130299 Cup, Shelf   (Replaces: W10130299) In-Stock Immediately $ 14.70

8 WP3-24004-109 Screw   (Replaces: W10191954) Special Order $ 9.14

9 W11223328 Assembly, Stud   (Replaces: 2196208) In-Stock Immediately $ 14.77

10 WPW10318960 Shelf, Wire (short)   (Replaces: W10318960) In-Stock Immediately $ 94.63

11 W11602886 Light Module, Led   (Replaces: W11251749) Special Order $ 42.63

12 2215823 Clip, Air Duct   (Replaces: 2315163) Special Order $ 10.94

13 WPW10318949 Shelf, Wire   (Replaces: W10318949) Special Order $ 77.11


    View Diagram in Separate Window     Print Icon   Print Part List

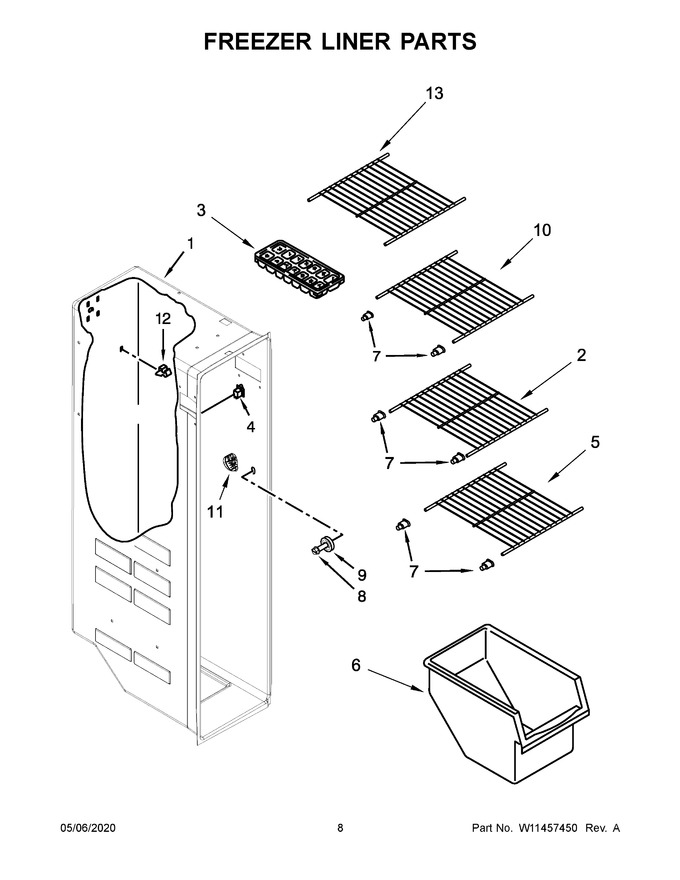

Diagram for WRS312SNHB02
