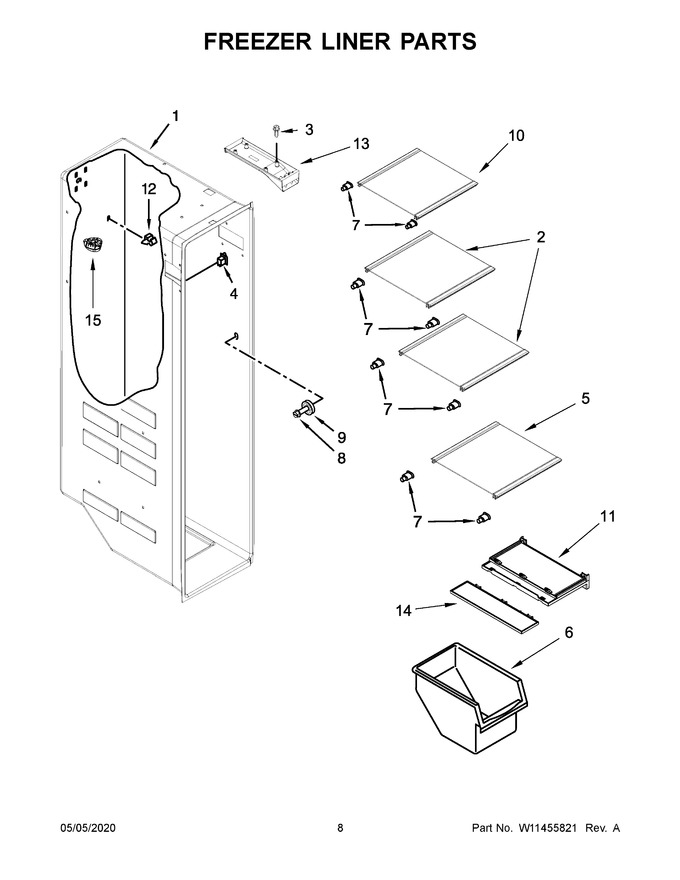

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W11162572 | Shelf, Glass (Replaces: W11048567) |
|
$ 118.69 | |||||
| 3 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 4 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 5 | W11357239 | Shelf, Glass (bottom) (Replaces: W11252833) |
|
$ 110.66 | |||||
| 6 | W11577967 | Bin, Freezer (Replaces: 2309757) |
|
$ 96.30 | |||||
| 7 | WPW10130299 | Cup, Shelf (Replaces: W10130299) |
|
Immediately | $ 14.70 | ||||
| 8 | W10191952 | Screw |
|
$ 5.65 | |||||
| 9 | W11527119 | Assembly, Shelf Stud (Replaces: W10173127) |
|
- | |||||
| 10 | W11162576 | Shelf, Glass (top) (Replaces: W11048571) |
|
$ 134.69 | |||||
| 11 | W11216934 | Assembly, Pizza Pocket (Replaces: W11183656) |
|
$ 89.44 | |||||
| 12 | 2215823 | Clip, Air Duct (Replaces: 2315163) |
|
$ 10.94 | |||||
| 13 | W11084314 | Duct Air, Freezer |
|
$ 103.06 | |||||
| 14 | W11318231 | Pivoting Shelf (Replaces: W11108242) |
|
- | |||||
| 15 | W11602886 | Light Module, Led (Replaces: W11251749) |
|
$ 42.63 |
