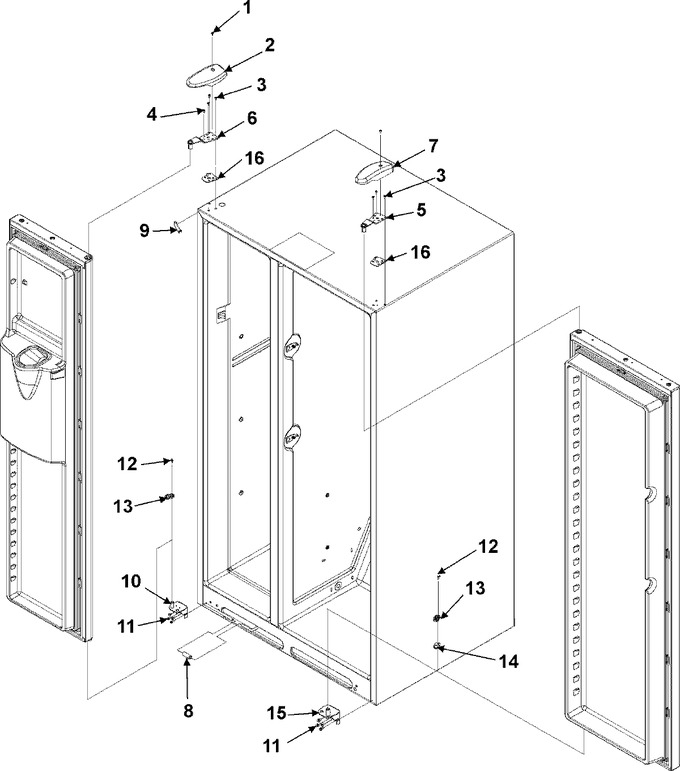

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8281196		Screw-mach   (Replaces: M0202327)	10		Immediately	$ 7.55
2	12629802W		Cover, Top Hinge (lt-wht)	10	Appelez-nous	-
3	R9800670		Screw, Tf   (Replaces: M0238731)	10			$ 10.58
4	W11214483		Screw, Mach   (Replaces: M0202321)	10			$ 14.72
5	12626910ED		Hinge, Top (rt-blk)   (Replaces: 12626901ED)	10			$ 124.87
6	12626911ED		Hinge, Top (lt-blk)   (Replaces: 12626902ED)	10			$ 89.05
7	12629801W		Cover, Top Hinge (rt-wht)	10			$ 24.68
8	WP2300868		Union, Tube (5/16``-5/16``)   (Replaces: 61006182)	10		Immediately	$ 29.05
9	67003484		Cover, Corner (wht)	10			$ 21.42
10	12636901ED		Hinge, Bottom (lt-blk)	10			$ 34.72
11	67003858		Screw, Bottom Hinge	10	Appelez-nous	-
12	W11227370		Screw, Tc   (Replaces: M0220431)	10		Immediately	$ 14.91
13	R0181181		Closure, Door (blk)   (Replaces: 12431302)	10		Immediately	$ 7.55
14	WP67005716		Shim, Dr Closure (blk)   (Replaces: 10361806)	10			$ 7.83
15	12636902ED		Hinge, Bottom (rt-blk)	10	Appelez-nous	-
16	12695601		Shim, Top Hinge	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
