View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

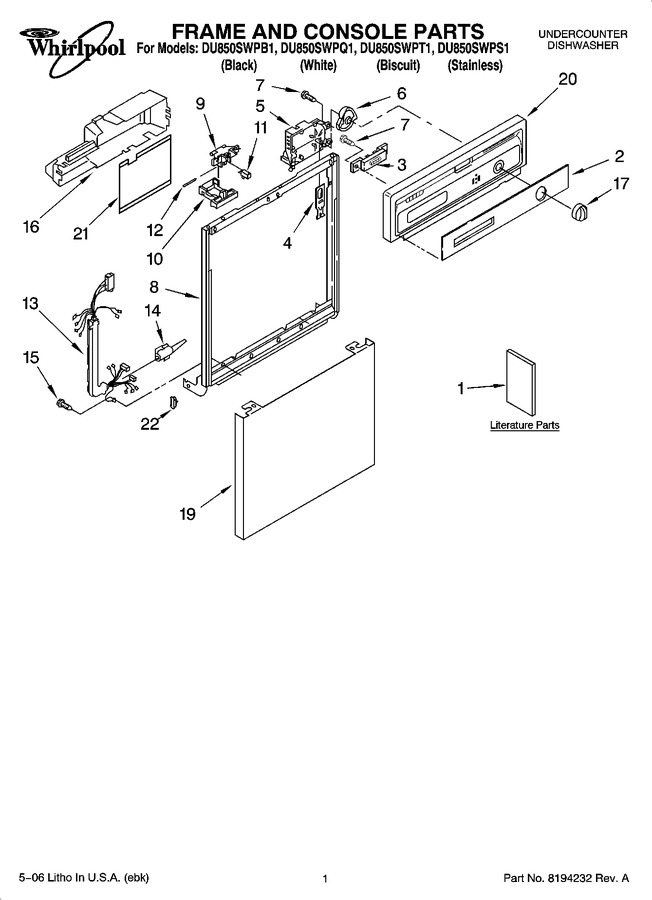

01 - Frame And Console Parts
02 - Inner Door Parts
03 - Tub Assembly Parts
04 - Pump And Spray Arm Parts
05 - Pump And Motor Parts
06 - Dishrack Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 677967 | Do-it Yourself Manual |
|
- | |||||
| 1 | 8535436 | Instructions, Installation |
|
- | |||||
| 1 | 8535639 | Guide, Energy |
|
- | |||||
| 1 | 3367007 | Instructions, Installation (supplement) (locating Your Water Supply) |
|
- | |||||
| 1 | 8535037 | Guide, Use & Care |
|
- | |||||
| 1 | 3385497 | Diagram, Wiring |
|
- | |||||
| 2 | 8575664 | Insert, Console (biscuit) |
|
- | |||||
| 2 | 8535384 | Insert, Console (white) |
|
- | |||||
| 2 | 8535383 | Insert, Console (black) |
|
$ 94.80 | |||||
| 3 | 8269366 | Switch, 5 Button |
|
$ 324.20 | |||||
| 4 | WP3369529 | Follower, Cam (Replaces: 3369529) |
|
$ 62.31 | |||||
| 5 | WP8535368 | Timer (Replaces: 8535368) |
|
$ 328.86 | |||||
| 6 | WP8271510 | Cam (Replaces: 8271510) |
|
$ 8.11 | |||||
| 7 | WP304231 | Screw, 8-18 X 1/2 (5) (Replaces: 304231) |
|
Immediately | $ 7.75 | ||||
| 8 | 9743028 | Door Frame (black) |
|
$ 62.19 | |||||
| 9 | WP3380854 | Bolt, Latch (Replaces: 3380854) |
|
Immediately | $ 66.11 | ||||
| 10 | 3375062 | Lever, Latch (biscuit) |
|
$ 37.58 | |||||
| 10 | 3369457 | Lever, Latch (black) |
|
$ 5.84 | |||||
| 10 | 3372231 | Lever, Latch White |
|
- | |||||
| 11 | 3369325 | Switch, (2) |
|
- | |||||
| 12 | 3368955 | Pin, Switch (2) |
|
$ 7.75 | |||||
| 13 | 8573183 | Harness And Protector |
|
$ 275.26 | |||||
| 14 | 3376405 | Elbow, Harness |
|
$ 14.02 | |||||
| 15 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.75 | |||||
| 16 | 8269526 | Cover, Control |
|
- | |||||
| 17 | 8275308 | Knob, Timer (white) (Replaces: 8275309) |
|
$ 71.48 | |||||
| 17 | 8275310 | Knob, Timer (biscuit) |
|
- | |||||
| 17 | 8275308 | Knob, Timer (black) |
|
$ 71.48 | |||||
| 19 | 3379375 | Panel Front (black) |
|
$ 115.07 | |||||
| 19 | 9743581 | Panel, Front (stainless) |
|
- | |||||
| 19 | 8054178 | Panel, Front (biscuit) |
|
$ 111.70 | |||||
| 19 | 3379376 | Panel Front (white) |
|
$ 116.81 | |||||
| 20 | 8535329 | Console (includes Item 2) (white) |
|
$ 178.75 | |||||
| 20 | 8535328 | Console (includes Item 2) (black) |
|
$ 107.46 | |||||
| 20 | 8575346 | Console (includes Item 2) (biscuit) |
|
- | |||||
| 21 | 3379671 | Shield, Control Cover |
|
- | |||||
| 22 | WP3373234 | Bearing Spring (2) (Replaces: 3373234) |
|
$ 10.49 |
