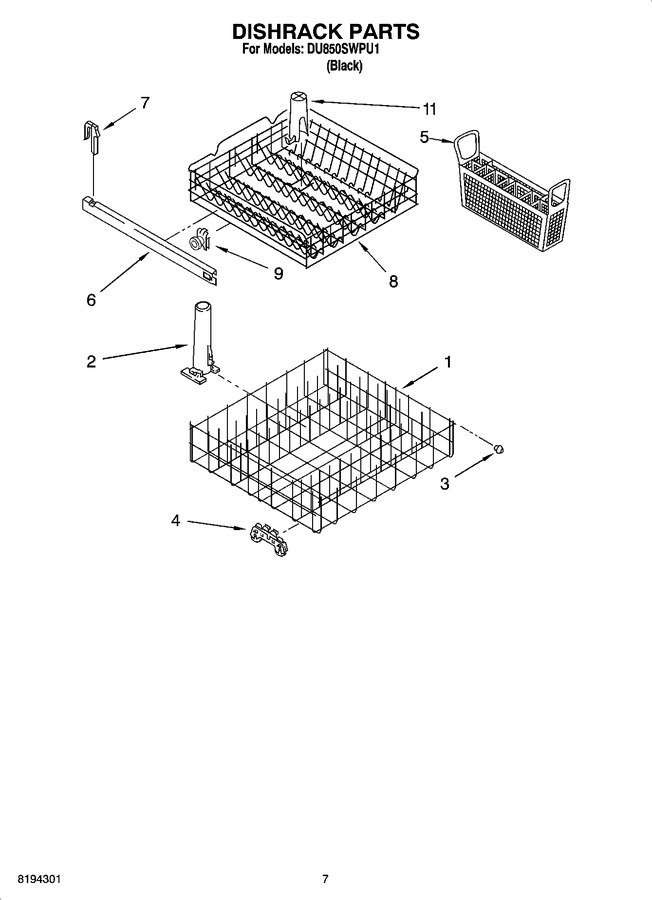

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10161215 | Dishrack, Lower (Replaces: 8539225) |
|
$ 173.46 | |||||
| 2 | WP8268825 | Tower, Protector (Replaces: 8268825) |
|
$ 103.71 | |||||
| 3 | WP3385142 | Bumper, Dishrack (2) (Replaces: 3385142) |
|
$ 90.30 | |||||
| 4 | WP8268645 | Wheel & Transport Assembly (4) (Replaces: 8268645) |
|
Immediately | $ 62.31 | ||||
| 5 | WP8268866 | Basket, Silverware (Replaces: 8268866) |
|
Immediately | $ 84.18 | ||||
| 6 | WP3385089 | Track, Dishrack (2) (Replaces: 3385089) |
|
Immediately | $ 80.00 | ||||
| 7 | WP8565925 | Stop, Track (4) (Replaces: 8524581) |
|
Immediately | $ 6.87 | ||||
| 8 | W11169039 | Dishrack, Upper (Replaces: 8539222) |
|
Immediately | $ 203.14 | ||||
| 9 | WPW10204131 | Wheel & Axle Assembly (4) (Replaces: 8268852) |
|
Immediately | $ 9.16 | ||||
| 11 | 8519550 | Diffuser, Water |
|
$ 51.36 | |||||
| N/A | Dishrack Repair Tip Tine Repair Kit (enough For Two Complete Dishracks) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| WP676453 | Vinyl Touch-up (4oz.) (white) (Replaces: 676453) |
|
Immediately | $ 53.65 | |||||
| WP676455 | Vinyl Touch-up (4oz.) (grey) (Replaces: 676455) |
|
Immediately | $ 39.58 | |||||
| 4396853 | Vinyl Touch-up (4oz.) (silver Atlantis) |
|
$ 38.22 | ||||||
| 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | ||||||
| 4378867 | Accessories Side Panel Kits (white) |
|
$ 404.07 | ||||||
| 4378868 | Accessories Side Panel Kits (black) |
|
- | ||||||
| 675788 | Accessories Side Panel Kits (biscuit) |
|
- | ||||||
| 675775 | Accessories Side Panel Kits (black) |
|
$ 112.15 | ||||||
| 675776 | Accessories Side Panel Kits (white) |
|
- | ||||||
| 675809 | Accessories Side Panel Kits (biscuit Moisture Barrier Kit) |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 4396277 | Accessories Side Panel Kits (kit Drain Hose) |
|
$ 41.17 | ||||||
| 3385556 | Accessories Side Panel Kits (12 Ft. Heavy Duty Spring Kit) |
|
Immediately | $ 38.26 | |||||
| 4318050 | Accessories Side Panel Kits (spring) |
|
$ 23.68 | ||||||
| 4392899 | Accessories Side Panel Kits Paint, Touch-up (1/2oz.) (biscuit) |
|
Immediately | $ 26.45 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | |||||
| 285006 | Paint, Pressurized Spray 12 Oz.) (superior Black) |
|
$ 57.04 | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 4378869 | Accessories Side Panel Kits (almond Custom Trim & Panel Kits) |
|
- | ||||||
| 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | ||||||
| 4317824 | Power Cord Kit (includes Powercord & Misc.hardware) |
|
Immediately | $ 19.77 | |||||
| 4378968 | Floor Mounting Kit |
|
$ 64.81 | ||||||
| 4396838RC | Dishrack Repair (white) (Replaces: 4396838) |
|
Immediately | $ 70.55 | |||||
| 4396840RC | Dishrack Repair (grey) (Replaces: 4396840) |
|
Immediately | $ 70.55 | |||||
| 4396840RC | Silver Atlantis Vinyl Touch-up (4 Oz.) (Replaces: 4396854) |
|
Immediately | $ 70.55 |
