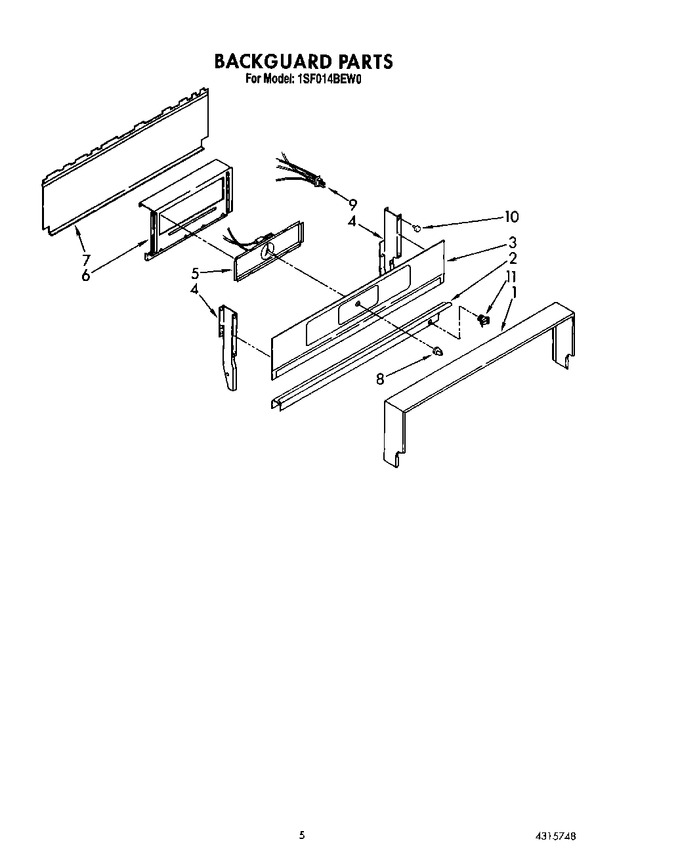

04 - Backguard


05 - Oven Door And Broiler


06 - Cooktop And Manifold, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4157121		Screw, 10-12 X 3/8 (6)		Appelez-nous	-
1	4315728		Frame		Appelez-nous	-
2	4157122		Screw, 10-12 X 1/2 (2)		Appelez-nous	-
2	4315484		Bottom, Backguard		Appelez-nous	-
3	4179026		Glass		Appelez-nous	-
4	4157123		Support, Backguard (screw, 10-32 X 1/2 (1))		Appelez-nous	-
4	4157165		Support, Backguard (left Hand)		Appelez-nous	-
4	4157166		Support, Backguard (right Hand)		Appelez-nous	-
5	4157214		Clock		Appelez-nous	-
6	4314858		Bracket, Clock		Appelez-nous	-
7	4315347		Panel, Rear		Appelez-nous	-
7	4157121		Screw, 10-12 X 3/8 (2)		Appelez-nous	-
8	786434		Knob, Clock		Appelez-nous	-
9	4157112		Block, Disconnect		Appelez-nous	-
10	4157128		Bumper (4)		Appelez-nous	-
11	4157133		Strain Relief		Appelez-nous	-
