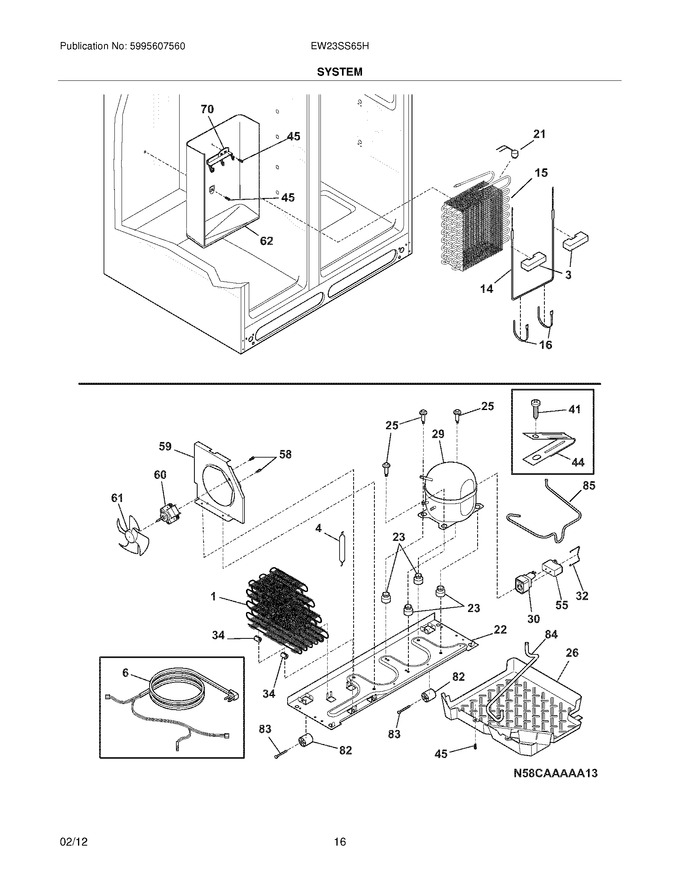

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 218679606 | Block-evap Coil,styrofoam ,(2) |
|
- | |||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 66.47 | ||||
| 22 | 240330010 | Base-compressor |
|
$ 163.01 | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 47.25 | |||||
| 25 | 240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) |
|
$ 13.95 | |||||
| 26 | 241697603 | Pan-defrost (Replaces: 241697602) |
|
$ 88.02 | |||||
| 32 | 241715901 | Strap-cover |
|
$ 12.60 | |||||
| 34 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 22.05 | |||||
| 41 | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909913) |
|
Immediately | $ 39.31 | ||||
| 58 | 240569201 | Screw,8-18 X 0.500 |
|
- | |||||
| 59 | 241946106 | Shroud-cond Fan |
|
$ 50.40 | |||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 24.43 | ||||
| 62 | 240429401 | Trough-drain |
|
$ 118.91 | |||||
| 70 | 218990801 | Bracket-evap/cvr Mtg |
|
$ 70.88 | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 57.30 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin |
|
Immediately | $ 39.27 | ||||
| 84 | 241957901 | Tube-drain,lower |
|
$ 67.73 | |||||
| 85 | 241844801 | Tube-connector,suction |
|
$ 62.80 | |||||
| F1 | 240333602 | Condenser |
|
- | |||||
| F14 | 242044113 | Heater-defrost (Replaces: 240316107) |
|
Immediately | $ 115.24 | ||||
| F15 | 5303918286 | Evaporator Kit |
|
$ 394.28 | |||||
| F21 | 5303918214 | Thermostat-defrost,kit |
|
Immediately | $ 37.13 | ||||
| F29 | 5303918452 | Compressor Kit |
|
- | |||||
| F30 | 241707709 | Starter (Replaces: 241713503) |
|
$ 90.56 | |||||
| F4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 35.19 | ||||
| F6 | 241516904 | Cord-service (Replaces: 241516901) |
|
Immediately | $ 42.98 | ||||
| F60 | 297279500 | Motor-condenser Fan (Replaces: 241584301) |
|
Immediately | $ 157.40 | ||||
| FNI | 241520403 | Harness-wiring |
|
$ 93.98 | |||||
| FNI | 5303918328 | Heat Exchanger Kit,suction Line ,service |
|
$ 407.98 | |||||
| FNI | 241834802 | Harness-wiring,machine Compt |
|
$ 172.61 | |||||
| NI | 5303918222 | Hot Tube Repair Kit,service |
|
$ 418.12 | |||||
| NI | 241941202 | Screw,hex Washer Head ,8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 | |||||
| NI | 240359403 | Screw-fan Shroud,(2) |
|
$ 4.21 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| NI | 240346701 | Tape-foam Seal,shroud |
|
$ 33.08 | |||||
| NI | 241852501 | Clip,wiring Harness |
|
$ 17.33 |
