View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Frame And Console
03 - Inner Door
04 - Tub
05 - Pump And Motor
06 - Dishrack , Lit/optional
07 - Miscellaneous
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

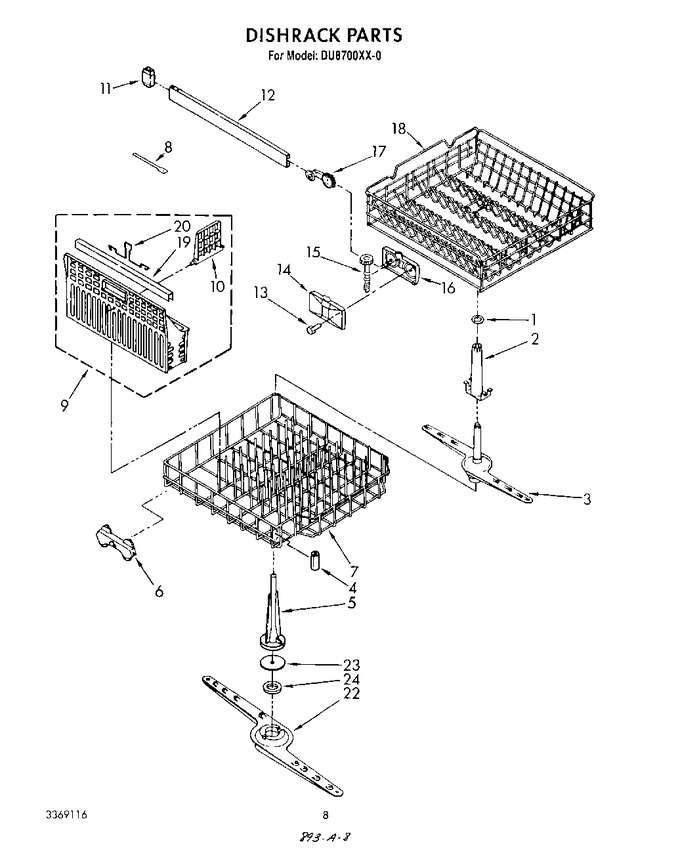

| 1 | 303722 | Clip |
|
$ 5.75 | |||||
| 2 | 304212 | Support, Arm |
|
- | |||||
| 3 | 304204 | Spray Arm, Upper |
|
$ 67.61 | |||||
| 4 | 304490 | Bumper (2) |
|
- | |||||
| 5 | 304170 | Tower, Pressure |
|
$ 72.38 | |||||
| 6 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3369509) |
|
$ 98.69 | |||||
| 7 | W10311986 | Dishrack, Lower (includes Item 4) (Replaces: 3368515) |
|
Immediately | $ 188.14 | ||||
| 8 | 3370075 | Clip, Strap |
|
- | |||||
| 9 | 3369492 | Silverware Basket Assembly |
|
- | |||||
| 10 | 3369489 | Cover, Basket |
|
- | |||||
| 11 | 300845 | End Cap (front Or Rear) |
|
$ 7.63 | |||||
| 12 | 3369071 | Track |
|
- | |||||
| 13 | WP9741232 | Screw (8) (Replaces: 301077) |
|
Immediately | $ 5.07 | ||||
| 14 | 304202 | Cover, Housing (2) |
|
- | |||||
| 15 | 304203 | Worm (2) |
|
- | |||||
| 16 | 304208 | Housing, Gear (2) |
|
- | |||||
| 17 | 304200 | Gear And Wheel Assembly (4) |
|
- | |||||
| 18 | W11169039 | Dishrack, Upper (Replaces: 3368073) |
|
Immediately | $ 203.14 | ||||
| 19 | 717528 | Trim, Basket |
|
- | |||||
| 20 | 300086 | Handle, Basket |
|
- | |||||
| 22 | 3369347 | Sprayarm, Lower |
|
- | |||||
| 23 | 3367910 | Cap, Nozzle |
|
$ 39.70 | |||||
| 24 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 24 | 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 54.01 | |||||
| 24 | 350942 | Primer (white) (Replaces: 206922) |
|
$ 94.14 | |||||
| 24 | 350941 | Leveler (thinner) |
|
- | |||||
| 24 | 978883 | Almond (uncut) |
|
- | |||||
| 24 | 799340 | Black (uncut) |
|
- | |||||
| 24 | 675476 | Vinyl Touch Up (blue) |
|
- | |||||
| 24 | 675506 | Tine Tip Repair Kit (blue-enough For Two Complete Dishracks) |
|
- | |||||
| 24 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 24 | 719576 | Bearing, Nozzle |
|
$ 7.48 | |||||
| 24 | 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | |||||
| 24 | 285006 | Paint, Spray 13 Oz. (black) |
|
$ 59.89 | |||||
| LIT3367007 | Instructions, Installation (supplement) (locating Your Water Supply) |
|
- | ||||||
| LIT3369116 | Parts List |
|
- | ||||||
| LIT3369359 | Wiring Diagram |
|
- | ||||||
| LIT3369087 | Instructions, Installation |
|
- | ||||||
| LIT3369105 | Guide, Use & Care |
|
- | ||||||
| LIT3369832 | Energy Guide |
|
- |
