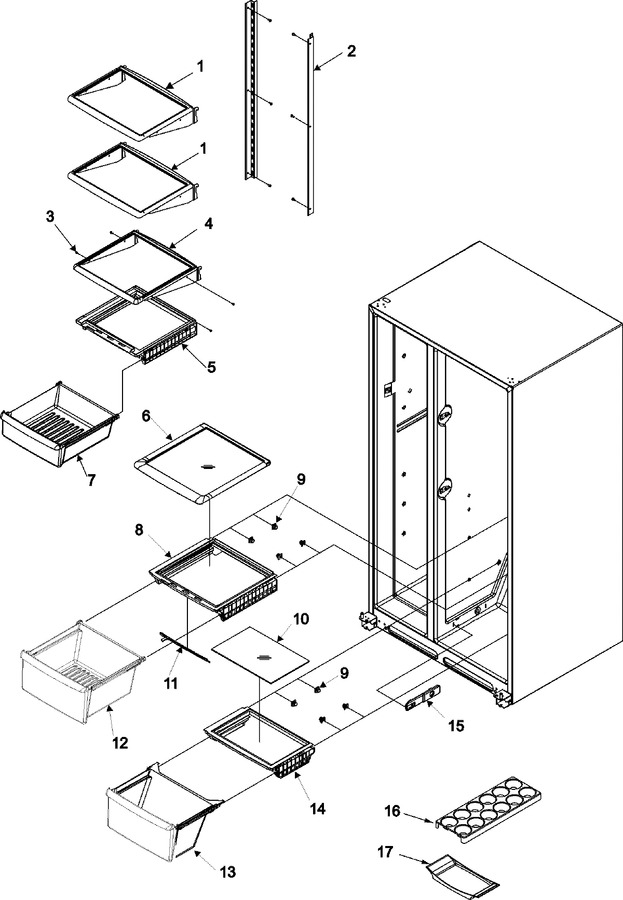

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67005110		Shelf, 33`` Ref Glide	10	Appelez-nous	-
2	67003840		Rail, L/r Lg Sxs	10	Appelez-nous	-
2	WP90767		Screw, Sm   (Replaces: M0211016)	10		Immediately	$ 7.82
3	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.02
4	67005111		Shelf, Ref Sta	10	Appelez-nous	-
5	67005318		Frame Adj Crisper	10	Appelez-nous	-
6	67004162		Shelf, Crisper Topx	10	Appelez-nous	-
7	67003892		Pan, Adj Crisper	10	Appelez-nous	-
8	67004077		Frame, Crisper Shelf	10	Appelez-nous	-
8	67004305		Seal, Crisper Frame (rear)	11	Appelez-nous	-
9	WP12603701		Support, Crisper Frame   (Replaces: 12603701)	10			$ 10.31
10	67004164		Glass, Meat Shelf	10	Appelez-nous	-
11	67004884		Glide, Humidity Control (blue)	10			$ 25.18
12	67004133		Roller, Pan		Appelez-nous	-
12	67005212		Pan, 33`` Lg Crsp	10	Appelez-nous	-
13	67004133		Roller, Pan		Appelez-nous	-
13	67005213		Pan, 33`` Meat	10	Appelez-nous	-
14	67004163		Frame, Meat Shelf	10	Appelez-nous	-
15	67004311		Temp Control Assy	10			$ 69.25
16	10436506		Tray, Egg	10			$ 8.28
17	67004412		Tray, Butter	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
