Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 67004178 Shelf, Upr Fz 10 Appelez-nous -
2 C8973801 Support, Frz Shelf 10 Special Order $ 8.35

3 67004184 Trim, Upr Shelf 10 Appelez-nous -
4 67004689 Shelf, Lower Fz (33``) 10 Appelez-nous -
5 67004944 Trim, Lwr Shelf 10 Appelez-nous -
6 67006188 Rail, Basket (lt) Appelez-nous -
7 67005328 Basket, Up Freezer Appelez-nous -
8 67006576 Rail, Basket (rt) Appelez-nous -
9 67005325 Handle, Basket Appelez-nous -
10 67005326 Basket, Lower Freezer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

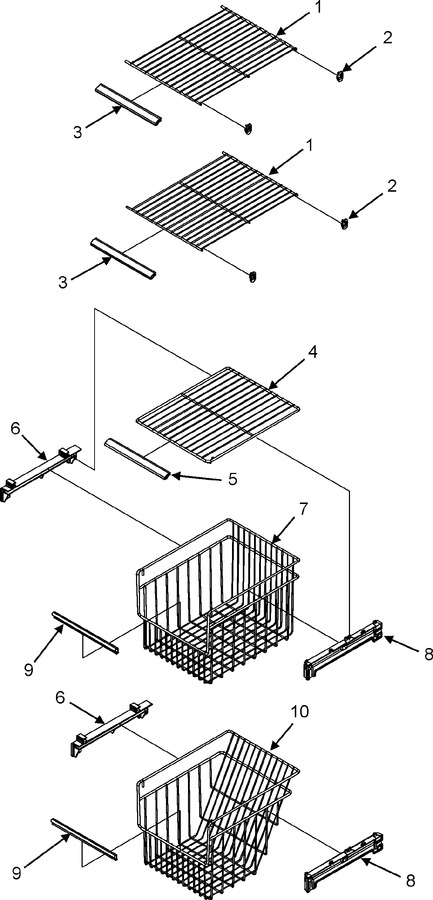

Diagram for ASD2328HEW
