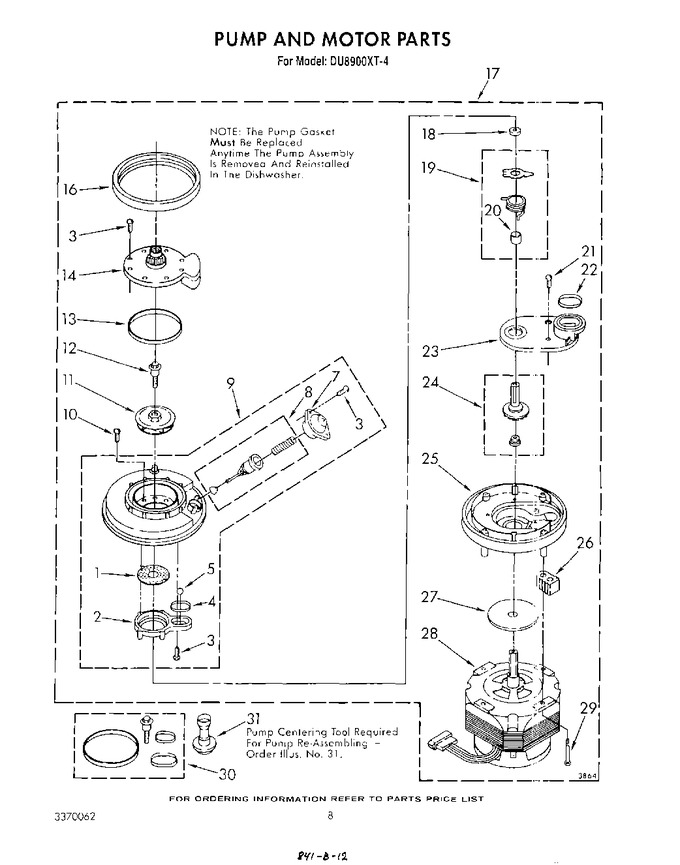

06 - Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	302720		Plate, Perforated (includes Item 5) (also Order Item 30) See Note A.		Appelez-nous	-
2	3367173		Base, Inlet (includes Items 1 & 5) (also Order Item 30) See Note A.		Appelez-nous	-
3	WP9741232		Screw, 8-18 X 5/8   (Replaces: 303573)			Immediately	$ 5.07
4	WP302710		Seal, Inlet Base   (Replaces: 302710)				$ 10.44
5	302709		Ball, Check				$ 7.80
7	302721		Cover, Valve		Appelez-nous	-
8	302738		Valve Stem Kit (includes Items 12, 13 & 22) See Note A.		Appelez-nous	-
9	303883		Separator Assembly (includes Items 12, 13 & 22) See Note A.		Appelez-nous	-
10	302717		Screw, 8-18 X 1-5/8 (4)		Appelez-nous	-
11	675806		Impeller, Wash (includes Items 12 & 13)   (Replaces: 303510)			Immediately	$ 142.08
12	WP3371152		Screw & Seal, 10-32 X 3/4   (Replaces: 303516)				$ 10.32
13	WP302711		Seal, Pump Outlet   (Replaces: 302711)				$ 39.87
14	302730		Outlet, Pump (includes Illus. 13)		Appelez-nous	-
16	717000		Gasket, Pump				$ 78.98
17	3367725		Pump & Motor Assembly		Appelez-nous	-
18	302707		Bushing, Grind		Appelez-nous	-
19	675806		Chopper Kit (also Order Item 30) See Note A.   (Replaces: 302718)			Immediately	$ 142.08
20	302705		Sleeve, Drain Impeller		Appelez-nous	-
21	WP9741232		Screw, 8-18 X 5/8   (Replaces: 718258)			Immediately	$ 5.07
22	302704		Seal, Drain Cover				$ 7.40
23	302723		Cover, Drain (also Order Item 30) See Note A.		Appelez-nous	-
24	675806		Impeller, Drain Kit (also Order Items 30 & 31)   (Replaces: 675501)			Immediately	$ 142.08
25	3367204		Base, Pump (includes Item 24) (also Order Item 30)		Appelez-nous	-
26	3367197		Support, Pump Mounting (4)				$ 5.70
27	W10909679		Slinger (see Note A.)   (Replaces: 303252)				$ 22.73
28	3367726		Motor (includes Items 24, 27 & 31) (also Order Item 30) (for Electrical Connector Only, See Wiring H		Appelez-nous	-
29	3369331		Screw (4)		Appelez-nous	-
30	675505		Pump Seal Kit (includes Items 4, 13 & 22)		Appelez-nous	-
31	303918		Tool, Pump Centering				$ 38.41
