SELECT A DIAGRAM

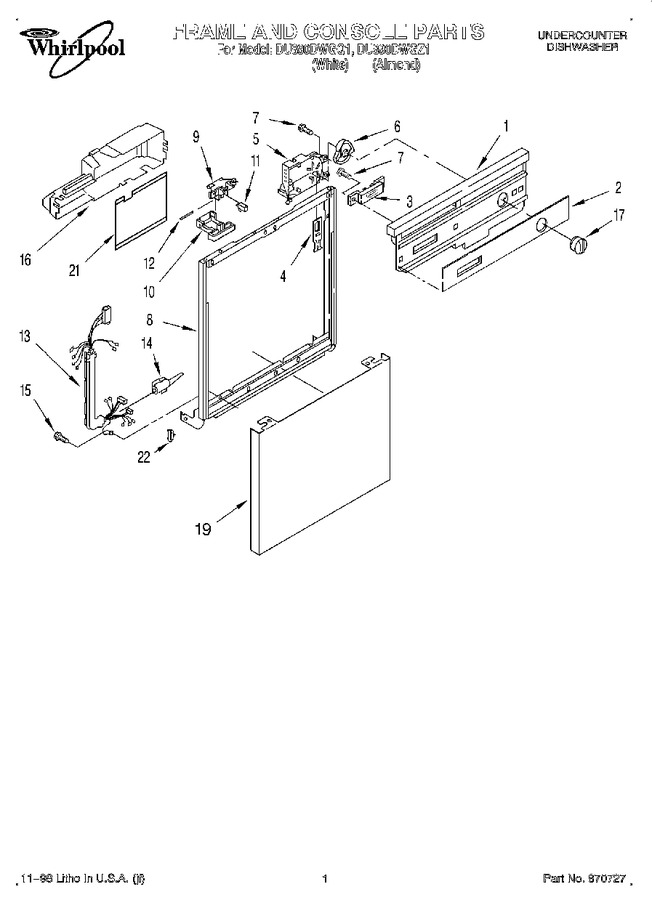

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Spray Arm


05 - Pump And Motor


06 - Dishrack


07 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8051475		Console (includes Item 2) (white)		Appelez-nous	-
1	8051476		Console (includes Item 2) (almond)		Appelez-nous	-
2	8051332		Insert, Console (almond)		Appelez-nous	-
2	8051331		Insert, Console (white)		Appelez-nous	-
3	8051158		Switch, 6 Button (almond)		Appelez-nous	-
3	8051157		Switch, 6 Button (white)		Appelez-nous	-
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WP8535368		Timer   (Replaces: 3376032)				$ 345.30
6	WP8271510		Cam   (Replaces: 3375140)				$ 8.96
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3375061		Lever, Latch (almond)		Appelez-nous	-
10	3372231		Lever, Latch White		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8051143		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 3400803)				$ 7.08
16	3379954		Cover, Timer		Appelez-nous	-
17	3375350		Knob, Timer (almond)		Appelez-nous	-
17	3375349		Knob, Timer (white)				$ 46.12
19	3379376		Panel Front (white)				$ 116.81
19	3379377		Panel Front (almond Model)		Appelez-nous	-
21	3379671		Shield, Control Cover		Appelez-nous	-
22	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
