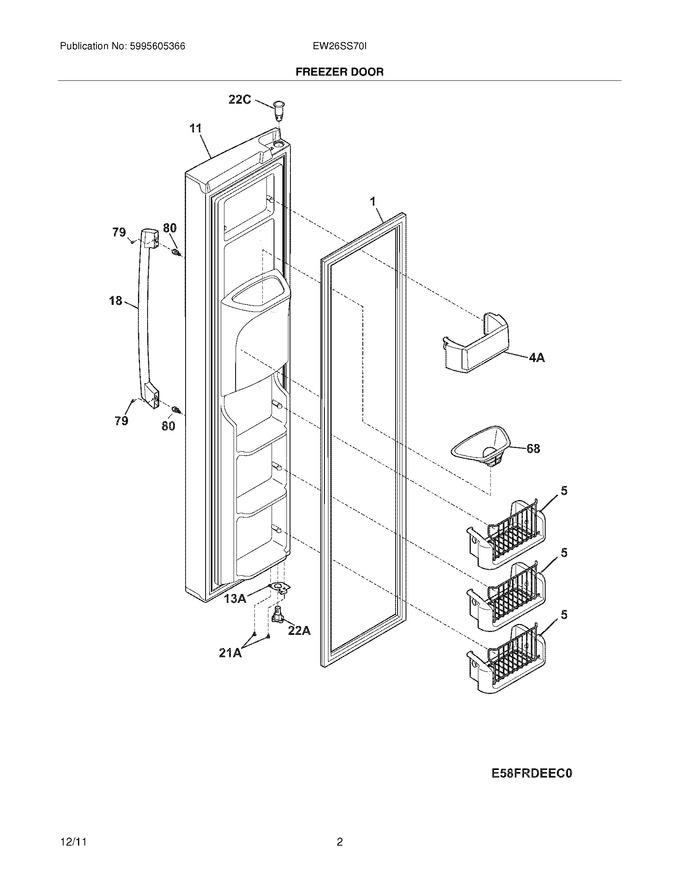

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 241545005 | Bin-tilt Out,tilt-out |
|
$ 145.16 | |||||
| 11 | 241837119 | Door-frzr,black ,complete Assy |
|
$ 493.86 | |||||
| 18 | 241761011 | Handle-door,(2) |
|
- | |||||
| 68 | 241908801 | Chute-ice |
|
$ 50.38 | |||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 13A | 241942602 | Door Stop |
|
$ 20.75 | |||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22A | 241760502 | Bearing-hinge,black ,lower |
|
$ 17.43 | |||||
| 22C | 241760402 | Bearing,hinge ,top |
|
$ 21.26 | |||||
| 4A | 241752001 | Bin-door,frzr-upper |
|
$ 58.59 | |||||
| F1 | 241786014 | Freezer Door Gasket, Grey, Magnetic (Replaces: 241786006) |
|
$ 105.74 | |||||
| F13A | 241936101 | Spacer-door |
|
- | |||||
| FNI | 241834701 | Harness-wiring,door |
|
$ 101.16 | |||||
| FNI | 5303918596 | Dispenser Heater Kit,115 (Replaces: 5303918371) |
|
$ 352.64 | |||||
| NI | 241601002 | Wrench,allen |
|
- | |||||
| NI | 240545201 | Connector-water,straight (Replaces: 240352102) |
|
$ 81.90 | |||||
| NI | 240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
$ 4.21 |
