View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

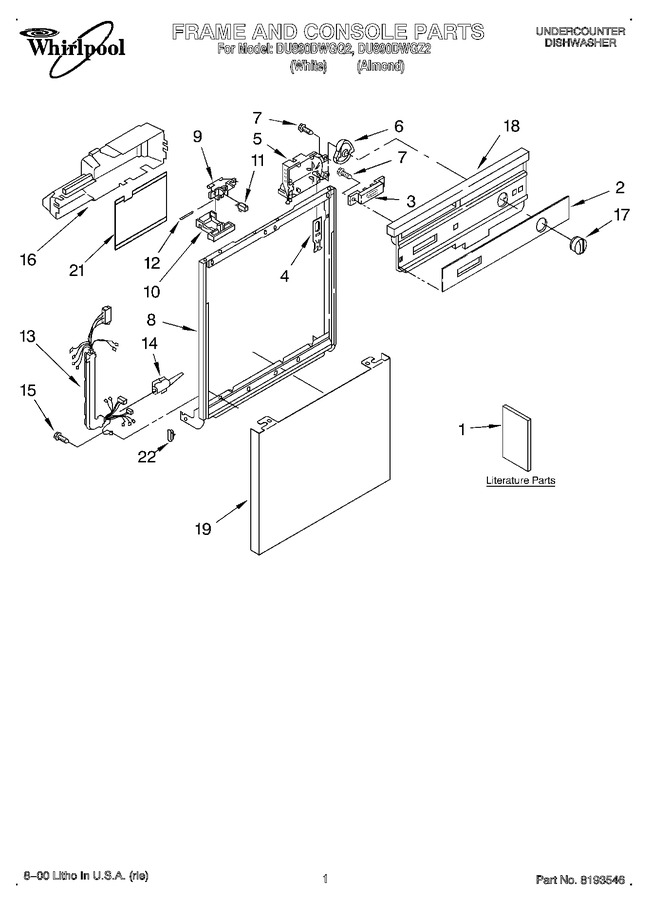

01 - Frame And Console, Literature
02 - Inner Door
03 - Tub Assembly
04 - Pump And Sprayarm
05 - Pump And Motor
06 - Dishrack
07 - Miscellaneous, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT0677967 | Do-it Yourself Manual |
|
- | |||||
| 1 | LIT8051229 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT3367007 | Literature Parts (instructions, Installation (supplement) (locating Your Water Supply)) |
|
- | |||||
| 1 | LIT8274627 | Literature Parts (guide, Energy) |
|
- | |||||
| 1 | LIT8051219 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8051173 | Literature Parts (diagram, Wiring) |
|
- | |||||
| 2 | 8051332 | Insert, Console (almond) |
|
- | |||||
| 2 | 8051331 | Insert, Console (white) |
|
- | |||||
| 3 | 8051158 | Switch, 6 Button (almond) |
|
- | |||||
| 3 | 8051157 | Switch, 6 Button (white) |
|
- | |||||
| 4 | WP3369529 | Follower, Cam (Replaces: 3369529) |
|
$ 65.43 | |||||
| 5 | WP8535368 | Timer (Replaces: 3376032) |
|
$ 345.30 | |||||
| 6 | WP8271510 | Cam (Replaces: 8271510) |
|
$ 8.96 | |||||
| 7 | WP304231 | Screw, 8-18 X 1/2 (5) (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 8 | 9743028 | Door Frame (black) |
|
$ 62.19 | |||||
| 9 | WP3380854 | Bolt, Latch (Replaces: 3380854) |
|
Immediately | $ 66.11 | ||||
| 10 | 3375061 | Lever, Latch (almond) |
|
- | |||||
| 10 | 3372231 | Lever, Latch White |
|
- | |||||
| 11 | 3369325 | Switch, (2) |
|
- | |||||
| 12 | 3368955 | Pin, Switch (2) |
|
$ 7.75 | |||||
| 13 | 8271443 | Harness And Protector |
|
- | |||||
| 14 | 3376405 | Elbow, Harness |
|
$ 14.02 | |||||
| 15 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 8.24 | |||||
| 16 | 3379954 | Cover, Timer |
|
- | |||||
| 17 | 3375350 | Knob, Timer (almond) |
|
- | |||||
| 17 | 3375349 | Knob, Timer (white) |
|
$ 46.12 | |||||
| 18 | 8051475 | Console (includes Item 2) (white) |
|
- | |||||
| 18 | 8051476 | Console (includes Item 2) (almond) |
|
- | |||||
| 19 | 3379376 | Panel Front (white) |
|
$ 116.81 | |||||
| 19 | 3379377 | Panel Front (almond Model) |
|
- | |||||
| 21 | 3379671 | Shield, Control Cover |
|
- | |||||
| 22 | WP3373234 | Bearing Spring (2) (Replaces: 3373234) |
|
$ 11.01 |
