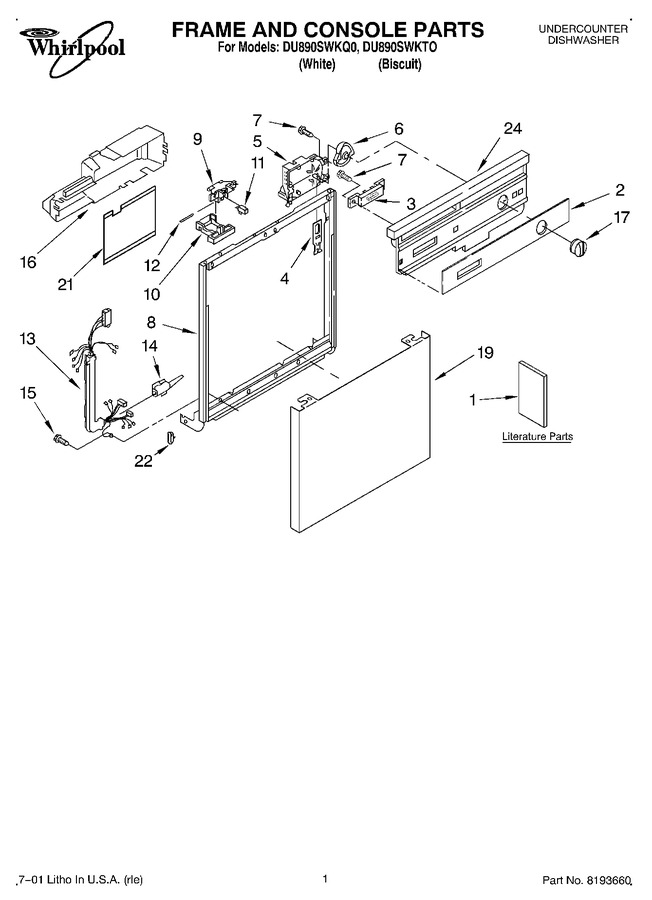

01 - Frame & Console, Literature
02 - Inner Door
03 - Tub Assembly
04 - Pump And Spray Arm
05 - Pump And Motor
06 - Dishrack
07 - Miscellaneous, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT0677967 | Do-it Yourself Manual |
|
- | |||||
| 1 | LIT3385181 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT3367007 | Literature Parts (instructions, Installation (supplement) (locating Your Water Supply)) |
|
- | |||||
| 1 | LIT8269534 | Literature Parts (guide, Energy) |
|
- | |||||
| 1 | LIT8269370 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT8275136 | Literature Parts (diagram, Wiring) |
|
- | |||||
| 2 | 8269392 | Insert, Console (white) |
|
- | |||||
| 2 | 8269393 | Insert, Console (biscuit) |
|
- | |||||
| 3 | 8269367 | Switch (black) |
|
- | |||||
| 4 | WP3369529 | Follower, Cam (Replaces: 3369529) |
|
$ 62.31 | |||||
| 5 | WP8535368 | Timer (Replaces: 3376032) |
|
$ 328.86 | |||||
| 6 | WP8271510 | Cam (Replaces: 8271510) |
|
$ 8.11 | |||||
| 7 | WP304231 | Screw, (Replaces: 304231) |
|
Immediately | $ 7.75 | ||||
| 8 | 9743028 | Door Frame (also Order Item 22) |
|
$ 62.19 | |||||
| 9 | WP3380854 | Bolt, Latch (Replaces: 3380854) |
|
Immediately | $ 66.11 | ||||
| 10 | 3378062 | Lever, Latch (biscuit) |
|
- | |||||
| 10 | 3372231 | Lever, Latch White |
|
- | |||||
| 11 | 3369325 | Switch, (2) |
|
- | |||||
| 12 | 3368955 | Pin, Switch (2) |
|
$ 7.75 | |||||
| 13 | 8275124 | Harness And Protector |
|
- | |||||
| 14 | 3376405 | Elbow, Harness |
|
$ 14.02 | |||||
| 15 | WP3400892 | Screw (Replaces: 3400892) |
|
$ 7.75 | |||||
| 16 | 8269526 | Cover, Timer |
|
- | |||||
| 17 | 8275308 | Knob, Timer (white) (Replaces: 8275309) |
|
$ 71.48 | |||||
| 17 | 8275310 | Knob, Timer (biscuit) |
|
- | |||||
| 19 | 3379376 | +front Panel (white) |
|
$ 116.81 | |||||
| 19 | 8054178 | Front Panel (biscuit) |
|
$ 111.70 | |||||
| 21 | 3379671 | Shield, Control Cover |
|
- | |||||
| 22 | WP3373234 | Bearing Spring (2) (Replaces: 3373234) |
|
$ 10.49 | |||||
| 24 | 8275198 | Console (includes Item 2) (biscuit) |
|
- | |||||
| 24 | 8275197 | Console (includes Item 2) (white) |
|
- |
