SELECT A DIAGRAM

02 - External Oven


03 - Backguard


04 - Oven Door And Broiler

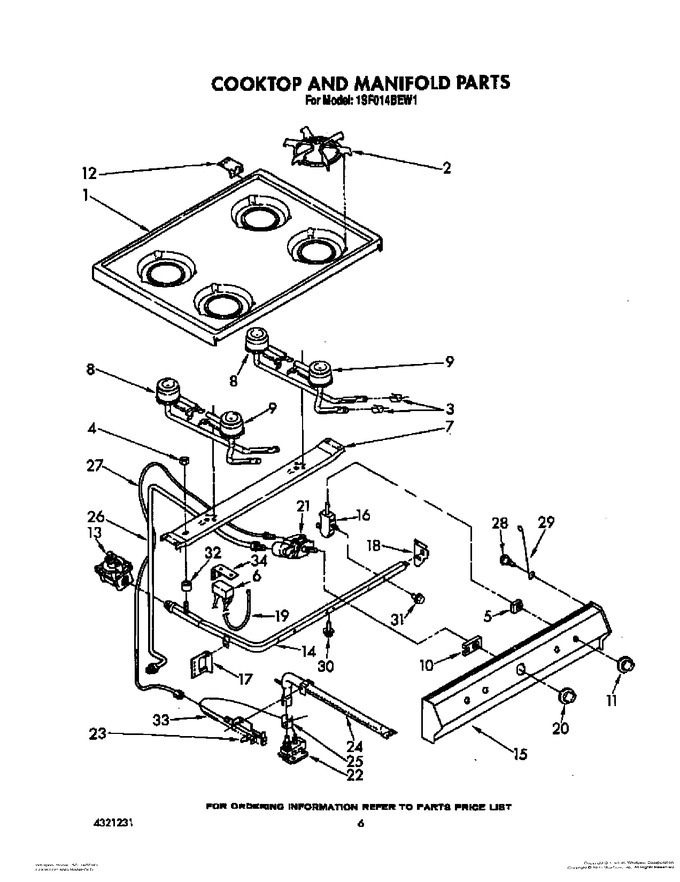

05 - Cooktop And Manifold, Lit/optional


06 - Internal Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4315745		Cooktop (almond)		Appelez-nous	-
1	4315744		Cooktop (white)		Appelez-nous	-
2	4157056		Grate (4)		Appelez-nous	-
3	4157074		Shutter, Air (4)		Appelez-nous	-
4	4157075		Nut, Hex		Appelez-nous	-
5	WP878009		Switch, Ignitor   (Replaces: 4157210)				$ 120.61
6	4315322		Module, Spark		Appelez-nous	-
7	4315733		Support, Burner		Appelez-nous	-
7	4157121		Screw, 10-12 X 3/8 (4)		Appelez-nous	-
8	4157121		Screw, 10-12 X 3/8 (2)		Appelez-nous	-
8	4179101		Burner, Rear (2)		Appelez-nous	-
9	4157121		Screw, 10-12 X 3/8 (2)		Appelez-nous	-
9	4179100		Burner, Front (2)		Appelez-nous	-
10	WP4157180		Switch, Valve   (Replaces: 4157180)				$ 119.66
11	WP4179282		Knob, Burner (4)   (Replaces: 4179282)				$ 22.83
12	4157115		Speed Clip (2)		Appelez-nous	-
12	WP681414		Screw, 10-12 X 1/2 (4)   (Replaces: 4157114)			Immediately	$ 8.47
12	4157083		Hinge, Cooktop (2)		Appelez-nous	-
12	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157111)			Immediately	$ 7.87
13	4157084		Regulator, Pressure		Appelez-nous	-
14	4315746		Manifold		Appelez-nous	-
14	WP308685		Screw, 10-12 X 1/2 (1)   (Replaces: 4157111)			Immediately	$ 7.87
15	4315747		Panel, Manifold		Appelez-nous	-
16	4314821		Valve, 90~ (4) (includes Ill. No. 31)		Appelez-nous	-
17	4157088		Support, Manifold (l.h.)		Appelez-nous	-
17	WP308685		Screw, 10-12 X 1/2 (3)   (Replaces: 4157111)			Immediately	$ 7.87
18	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 4157111)			Immediately	$ 7.87
18	4314820		Support, Manifold (r.h.)		Appelez-nous	-
19	4179200		Ignitor (r.h.)		Appelez-nous	-
19	4179201		Ignitor (l.h.)		Appelez-nous	-
20	WPY07506601		Knob, Thermostat   (Replaces: 4179283)				$ 71.30
21	4314890		Thermostat (includes Ill. No. 30)		Appelez-nous	-
22	WP3387230		Screw, 10-12 X 3/4 (2)   (Replaces: 4157125)			Immediately	$ 8.54
22	4157094		Valve, Safety		Appelez-nous	-
23	4157095		Pilot		Appelez-nous	-
23	4157126		Screw, 10-24 X 1/4 (1)		Appelez-nous	-
24	4179289		Burner, Oven		Appelez-nous	-
25	4157097		Shutter, Burner		Appelez-nous	-
26	4157098		Tubing 3/8`` (thermostat To Safety Valve)		Appelez-nous	-
27	4157099		Tubing 3/16`` (thermostat To Pilot)		Appelez-nous	-
28	4157018		Screw		Appelez-nous	-
29	4157010		Rod, Support		Appelez-nous	-
30	4314816		Bolt, Thermostat Mounting (2)		Appelez-nous	-
31	4314817		Bolt, Valve Mounting		Appelez-nous	-
32	4315207		Spacer, Manifold		Appelez-nous	-
33	4315316		Ignitor, Oven		Appelez-nous	-
34	4157171		Plate, Spark Module		Appelez-nous	-
34	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
34	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
34	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
	LIT4315632		Guide, Use & Care		Appelez-nous	-
	LIT4321231		List, Repair Parts		Appelez-nous	-
	LIT4315635		Wiring Diagram		Appelez-nous	-
	LIT4315633		Instuctions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
