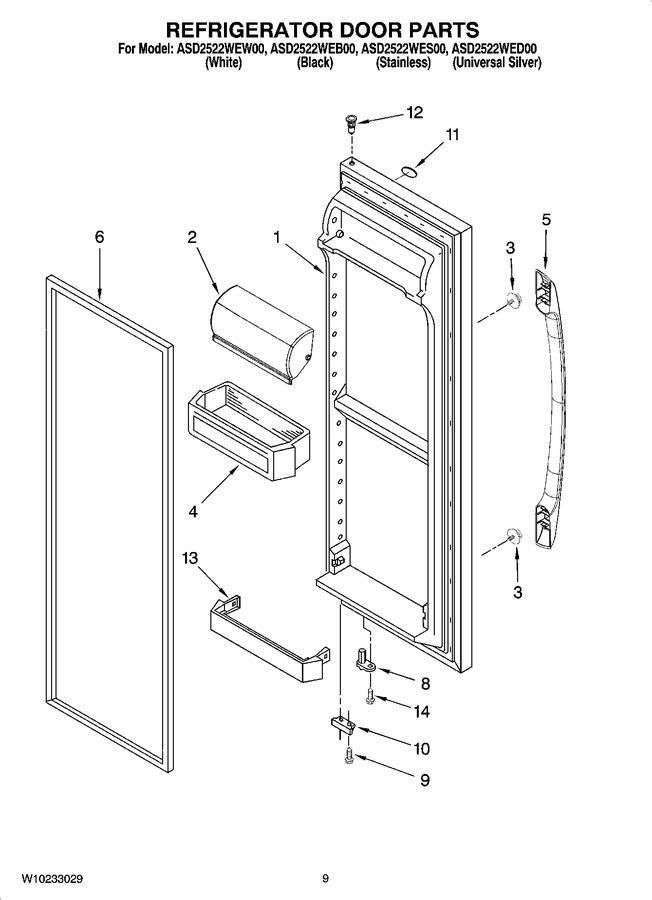

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10173663		Refrigerator Door (includes Item 6) (universal Silver)		Appelez-nous	-
1	W10173407		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	W10173409		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	W10171245		Refrigerator Door (includes Item 6) (stainless Steel)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WPW10288153		Screw, Mounting   (Replaces: W10129563)			Immediately	$ 8.69
4	WP2187172		Door Bin (3)   (Replaces: 2187172K)			Immediately	$ 45.09
5	WPW10179168		Handle, Rh (white)   (Replaces: W10179168)				$ 163.25
5	W10179166		Handle, Rh (black)		Appelez-nous	-
6	2159075		Door Gasket, Magnetic (repair) (mist Beige)   (Replaces: 2221302)			Immediately	$ 317.14
6	2159083		Door Gasket, Magnetic (repair) (black)   (Replaces: 2221313)				$ 251.49
8	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
9	WP489483		Screw   (Replaces: 489420)				$ 10.87
10	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
10	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
11	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 59.75
12	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
13	WP2177962K		Trivet   (Replaces: 2177962)				$ 81.09
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
