SELECT A DIAGRAM

Diagram for 01 - Frame And Console Parts
01 - Frame And Console Parts

Diagram for 02 - Inner Door Parts
02 - Inner Door Parts

Diagram for 03 - Tub Assembly Parts
03 - Tub Assembly Parts

Diagram for 04 - Pump And Spray Arm Parts
04 - Pump And Spray Arm Parts

Diagram for 05 - Pump And Motor Parts
05 - Pump And Motor Parts

Diagram for 06 - Dishrack Parts
06 - Dishrack Parts

Diagram for 07 - Optional Parts (not Included) Miscellaneous Parts
07 - Optional Parts (not Included) Miscellaneous Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT0677967 Do-it Yourself Manual Appelez-nous -
1 LIT3385181 Literature Parts (instructions, Installation) Appelez-nous -
1 LIT3367007 Literature Parts (instructions, Installation (supplement) (locating Your Water Supply)) Appelez-nous -
1 LIT8534945 Literature Parts (guide, Energy) Appelez-nous -
1 LIT3385495 Literature Parts (guide, Use & Care) Appelez-nous -
1 LIT3385501 Literature Parts (diagram, Wiring) Appelez-nous -
2 3385508 Insert, Console (white) Appelez-nous -
2 3385509 Insert, Console (biscuit) Appelez-nous -
3 8269367 Switch (black) Appelez-nous -
4 WP3369529 Follower, Cam   (Replaces: 3369529) Special Order $ 65.43

5 WP8535368 Timer   (Replaces: 3376032) Special Order $ 345.30

6 WP8271510 Cam   (Replaces: 8271510) Special Order $ 8.96

7 WP304231 Screw,   (Replaces: 304231) In-Stock Immediately $ 8.14

8 9743028 Door Frame (also Order Item 22) Special Order $ 62.19

9 WP3380854 Bolt, Latch   (Replaces: 3380854) In-Stock Immediately $ 66.11

10 3375062 Lever, Latch (biscuit) Special Order $ 37.58

10 3372231 Lever, Latch White Appelez-nous -
11 3369325 Switch, (2) Appelez-nous -
12 3368955 Pin, Switch (2) Special Order $ 7.75

13 8275124 Harness And Protector Appelez-nous -
14 3376405 Elbow, Harness Special Order $ 14.02

15 WP3400892 Screw   (Replaces: 3400892) Special Order $ 8.24

16 8269526 Cover, Timer Appelez-nous -
17 8275308 Knob, Timer (white)   (Replaces: 8275309) Special Order $ 75.05

17 8275310 Knob, Timer (biscuit) Appelez-nous -
19 3379376 +front Panel (white) Special Order $ 116.81

19 8054178 Front Panel (biscuit) Special Order $ 111.70

21 3379671 Shield, Control Cover Appelez-nous -
22 WP3373234 Bearing Spring (2)   (Replaces: 3373234) Special Order $ 11.01

24 3384064 Console (includes Item 2) (biscuit) Appelez-nous -
24 3384063 Console (includes Item 2) (white) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

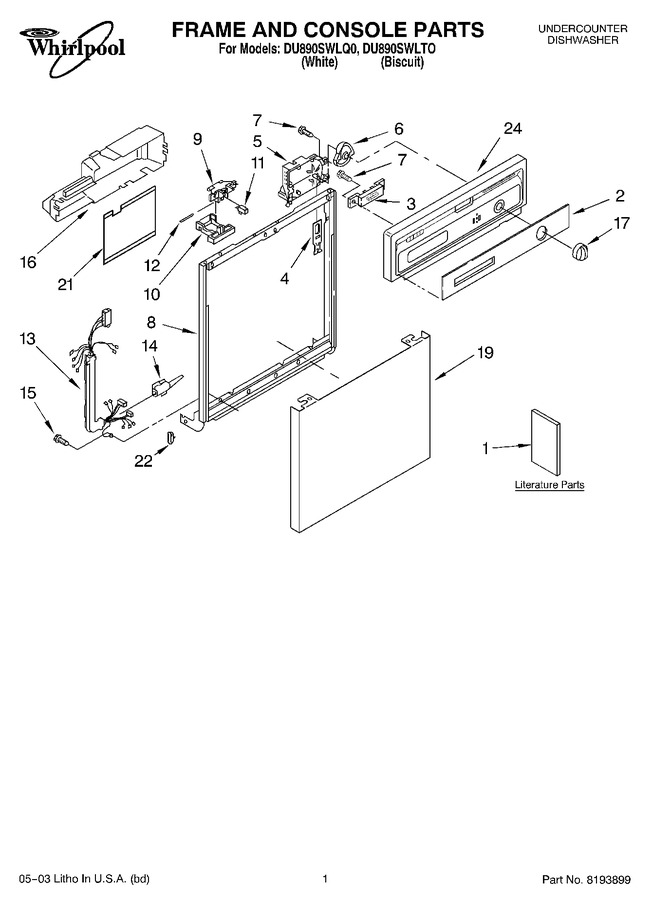

Diagram for DU890SWLTO
