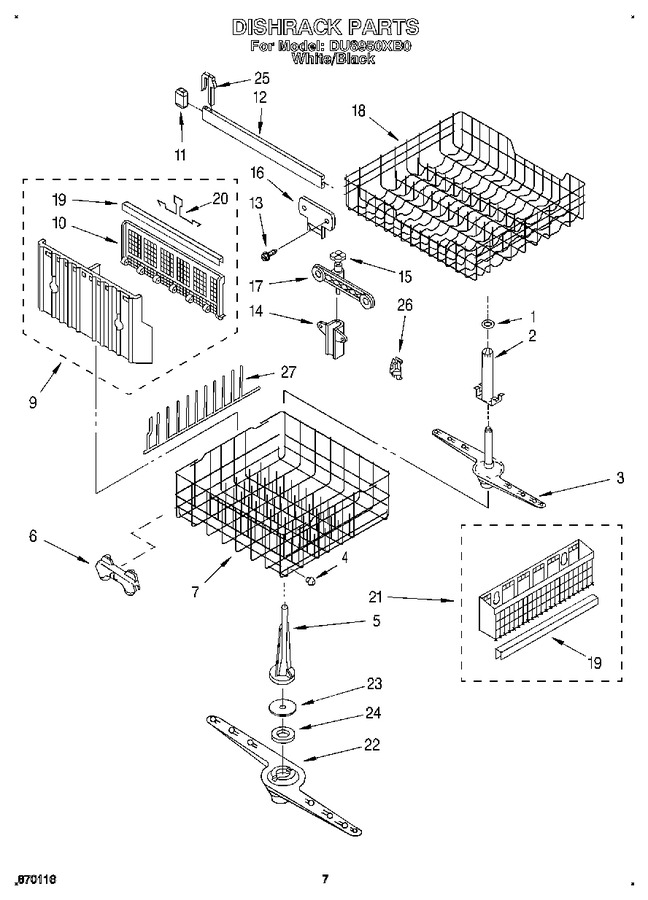

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	303722		Clip				$ 5.75
2	3368290		Support, Arm		Appelez-nous	-
3	3368300		Spray Arm, Upper		Appelez-nous	-
4	WP3385142		Bumper (2)   (Replaces: 3368006)				$ 85.34
5	300848		Tower, Pressure		Appelez-nous	-
6	WP3376961		Wheel & Transport Assembly (4)   (Replaces: 3369509)				$ 88.82
7	W10311986		Dishrack, Lower (includes Items 4 & 6)   (Replaces: 3370488)			Immediately	$ 169.33
9	3369488		Silverware Basket Assembly		Appelez-nous	-
10	3369485		Cover, Basket		Appelez-nous	-
11	300845		End Cap (front Or Rear)				$ 7.63
12	3369071		Track		Appelez-nous	-
13	WP9741232		Screw (8)   (Replaces: 301077)			Immediately	$ 4.56
14	WP3369980		Housing, Adjuster (2)   (Replaces: 3369980)				$ 76.55
15	3369981		Worm (2)		Appelez-nous	-
16	WP3369979		Plate, Mtg. (2) (adjuster)   (Replaces: 3369979)				$ 6.30
17	675791		Arm Assembly (includes Item 15) (left Side)   (Replaces: 3369973)				$ 115.51
17	675791		Arm Assembly (includes Item 15) (right Side)   (Replaces: 3369977)				$ 115.51
18	W11169039		Dishrack, Upper   (Replaces: 3369911)			Immediately	$ 182.83
19	717528		Trim, Basket		Appelez-nous	-
20	300086		Handle, Basket		Appelez-nous	-
21	3369494		Basket, Utensil		Appelez-nous	-
22	3369347		Sprayarm, Lower		Appelez-nous	-
23	3367910		Cap, Nozzle				$ 39.70
24	719576		Bearing, Nozzle				$ 7.48
25	3369046		Stop, Track (2)		Appelez-nous	-
26	3368629		Retainer, Flexrow				$ 5.84
27	676458		Tine Tip Repair Kit (grey Enough For Two Complete Dishracks)				$ 43.49
27	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
27	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
27	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
27	W10728160		Flexrow   (Replaces: 3370561)			Immediately	$ 48.01
27	285006		Paint, Spray 13 Oz. (black)				$ 53.90
27	350942		Primer (white)   (Replaces: 206922)				$ 84.73
27	350941		Leveler (thinner)		Appelez-nous	-
27	978883		Almond (uncut)		Appelez-nous	-
27	799340		Black (uncut)		Appelez-nous	-
27	4317925		Side Panel Kit (white)		Appelez-nous	-
27	4317926		Avocado		Appelez-nous	-
27	4317927		Gold		Appelez-nous	-
27	4317929		Side Panel Kit: (almond)		Appelez-nous	-
27	4317930		Toast		Appelez-nous	-
27	4317931		Platinum		Appelez-nous	-
27	4318050		Door Spring Kit (heavy Duty)				$ 23.68
27	W10840471		Vinyl Touch-up (blue)   (Replaces: 675576)				$ 42.89
27	675677		Tine Tip Repair Kit (blue - Enough For Two Complete Dishracks)		Appelez-nous	-
27	WP676453		Vinyl Touch-up (white)   (Replaces: 676453)			Immediately	$ 48.29
27	675679		Tine Tip Repair Kit (white - Enough For Two Complete Dishracks)			Immediately	$ 34.95
27	WP676455		Vinyl Touch-up (grey)   (Replaces: 676455)			Immediately	$ 41.27
27	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
	LIT3373742		Guide, Use & Care		Appelez-nous	-
	LIT0677967		Do-it Yourself Manual		Appelez-nous	-
	LIT3373633		Wiring Diagram		Appelez-nous	-
	LIT3369679		Instructions, Installation		Appelez-nous	-
	LIT3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
	LIT3373480		Energy Guide		Appelez-nous	-
