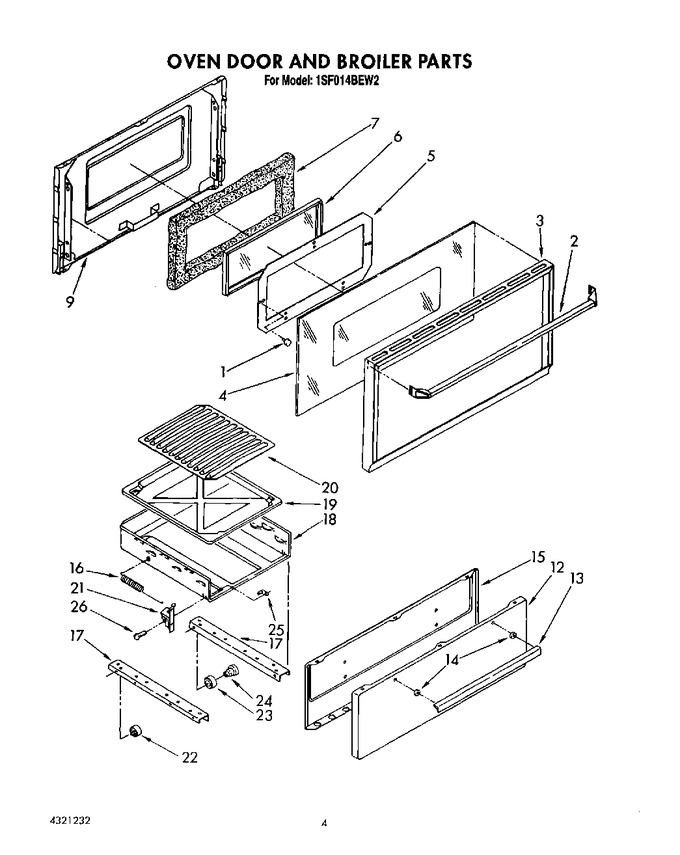

04 - Oven Door And Broiler


05 - Cooktop And Manifold, Lit/optional


06 - Internal Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4157128		Bumper (7)		Appelez-nous	-
2	4157116		Screw, 8-18 X 3/8 (4)		Appelez-nous	-
2	4179027		Handle, Door		Appelez-nous	-
3	WP308685		Screw, 10-12 X 1/2 (5)   (Replaces: 4157117)			Immediately	$ 7.87
3	4179008		Frame, Door		Appelez-nous	-
4	4157030		Glass		Appelez-nous	-
5	WP681414		Screw, 10-12 X 1/2 (5)   (Replaces: 4157114)			Immediately	$ 8.47
5	4157154		Baffle		Appelez-nous	-
6	4157032		Window Assy		Appelez-nous	-
7	4157115		Speed Clip (2)		Appelez-nous	-
7	4157033		Insulation		Appelez-nous	-
9	4320337		Liner, Door		Appelez-nous	-
12	WP308685		Panel, Broiler (screw, 10-12 X 1/2 (5))   (Replaces: 4157117)			Immediately	$ 7.87
12	4315743		Panel, Broiler (almond)		Appelez-nous	-
12	4315742		Panel, Broiler (white)		Appelez-nous	-
13	4157118		Screw, 10-12 X 5/8 (2)		Appelez-nous	-
13	4157119		Washer (2)		Appelez-nous	-
13	4157794		Handle, Broiler Door		Appelez-nous	-
14	4157041		Spacer (2)		Appelez-nous	-
15	4315091		Liner, Broiler Door		Appelez-nous	-
16	4157043		Spring (2)		Appelez-nous	-
17	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4315391)			Immediately	$ 7.87
17	4315383		Track, Upper (2)		Appelez-nous	-
18	4315088		Liner, Broiler		Appelez-nous	-
18	WP308685		Screw, 10-12 X 1/2 (4)   (Replaces: 4157117)			Immediately	$ 7.87
19	4396923		Pan, Broiler   (Replaces: 4315095)			Immediately	$ 60.71
20	4315094		Grid		Appelez-nous	-
21	4157049		Hinge, Door (l.h.)		Appelez-nous	-
21	WP308685		Hinge, Door (screw, 10-12 X 1/2 (4))   (Replaces: 4157111)			Immediately	$ 7.87
21	W10080180		Hinge, Door (nut)   (Replaces: 4157120)				$ 14.15
21	4157048		Hinge, Door (r.h.)		Appelez-nous	-
22	4315387		Bumper, Nylon (4)		Appelez-nous	-
23	4315388		Roller (2)		Appelez-nous	-
24	4315381		Pin, Roller (2)		Appelez-nous	-
25	4157053		Plate (2)		Appelez-nous	-
26	4157054		Screw (2)		Appelez-nous	-
