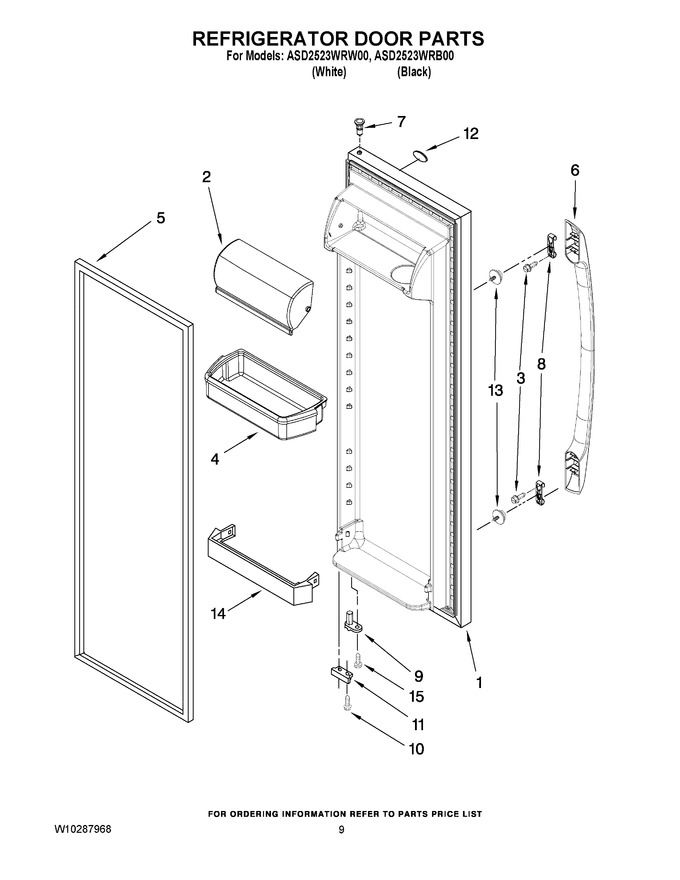

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10268936		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
1	W10268929		Refrigerator Door (includes Item 5) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP67006197		Screw   (Replaces: 12990202)				$ 9.11
4	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
5	2159083		Refrigerator Door (includes Item 5) (black)   (Replaces: 2309529)				$ 251.49
5	2159075		Door Gasket, Magnetic (white)   (Replaces: 2309528)			Immediately	$ 333.00
6	67006461		Handle (black)		Appelez-nous	-
6	WPW10179168		Handle (white)   (Replaces: W10179168)				$ 171.41
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
8	13067101		Clip				$ 5.65
9	WP2182179		Door Closer,   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 11.41
11	2321218W		Bracket, Door Stop (white)		Appelez-nous	-
11	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 42.79
12	2325418		Nameplate				$ 44.68
13	WPW10288153		Screw   (Replaces: 2326016)			Immediately	$ 9.65
14	WP2309941		Trivet   (Replaces: 2309941)			Immediately	$ 76.32
15	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
