SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)

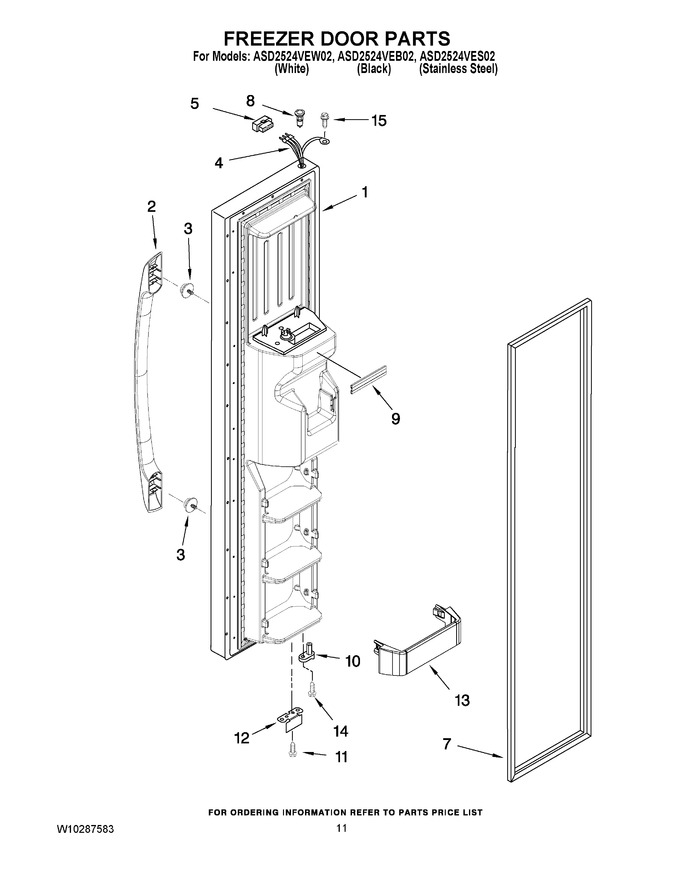

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169443		Freezer Door (includes No.8 And Dispenser Front Parts) (black)		Appelez-nous	-
1	W10169444		Freezer Door (includes No.8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	W10169442		Freezer Door (includes No.8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10179171		Handle, Assy (white)				$ 77.64
2	W10179169		Handle, Assy (black)				$ 72.25
2	W11690159		Handle, Assy (stainless)   (Replaces: W10136871)				$ 165.49
3	WPW10288153		Screw, Mounting   (Replaces: 2326016)			Immediately	$ 8.69
4	WPW10193328		Dispenser Harness   (Replaces: W10193328)				$ 127.80
5	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
7	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
7	2159074		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221303)				$ 310.19
8	WP2182181		Thimble-top (for Stainless Steel Model)   (Replaces: 2308091)				$ 7.76
8	2301049		Thimble-top (for White, Black, Biscuit And Stainless Vcm Models)				$ 75.42
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 23.11
10	2323535		Door Closer, Upper Cam				$ 33.97
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2323534B		Bracket, Door Stop (black)		Appelez-nous	-
12	2323534		Bracket, Door Stop (chrome)		Appelez-nous	-
13	WP2174267		Trivet-fc   (Replaces: 2174267)				$ 88.90
14	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
15	WPW10141604		Screw   (Replaces: W10141604)				$ 8.43

    View Diagram in Separate Window       Print Part List
