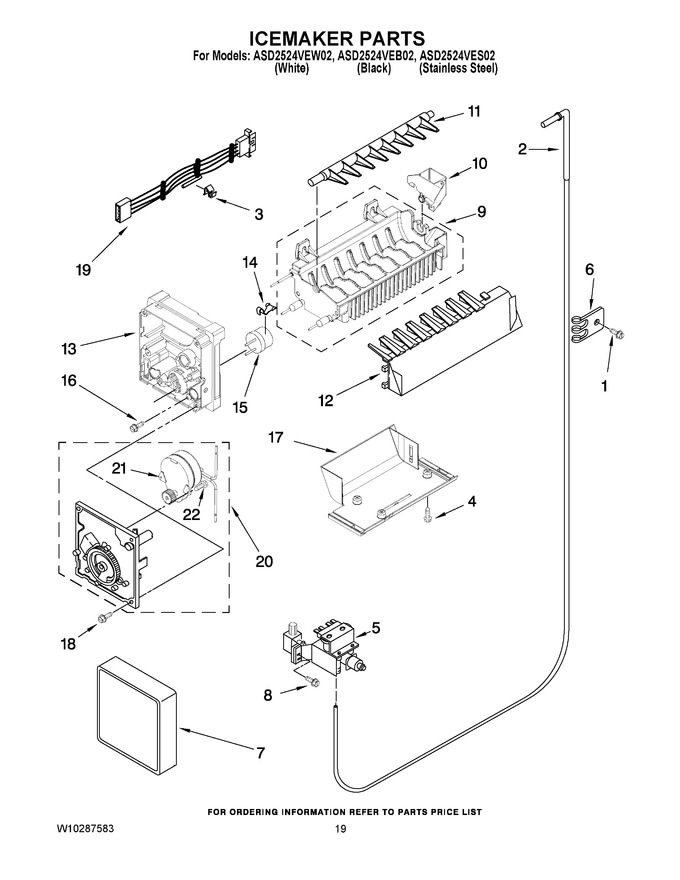

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 2 | W11505385 | Fitting, Water Tube (Replaces: 2209774) |
|
$ 35.32 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 11.10 | |||||
| 4 | WP489478 | Screw, (Replaces: W10001260) |
|
$ 8.18 | |||||
| 5 | W10408179 | Filter Valve Asm (Replaces: 2188708) |
|
Immediately | $ 96.38 | ||||
| 6 | WP488366 | Clip, Tube (Replaces: 2208136) |
|
$ 11.92 | |||||
| 7 | WPW10289690 | Cover (Replaces: 2174155) |
|
Immediately | $ 8.82 | ||||
| 8 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 22.22 | |||||
| 9 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Silicone Grease) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 10 | W10122561 | Cup-water Fill |
|
$ 29.16 | |||||
| 11 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 12 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 99.42 | |||||
| 13 | WP2195914 | Support (Replaces: 2194712) |
|
$ 109.80 | |||||
| 14 | WP2315522 | Retainer,thermostat (Replaces: 2315522) |
|
$ 11.60 | |||||
| 15 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 114.64 | |||||
| 16 | 8533917 | Screw |
|
$ 14.04 | |||||
| 17 | W11500948 | Bracket, Ice Maker Mounting (Replaces: 628320) |
|
Immediately | $ 33.78 | ||||
| 18 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 19 | WP2187464 | Harness, Wiring (Replaces: 2187464) |
|
$ 130.80 | |||||
| 20 | 8201515 | Module Assembly (includes Items 37 & 38) (Replaces: 626691) |
|
Immediately | $ 141.64 | ||||
| 21 | 8201515 | Motor (Replaces: 626683) |
|
Immediately | $ 141.64 | ||||
| 22 | 489136 | Screw |
|
$ 10.80 | |||||
| 100 | WPW10190965 | Icemaker Assembly (Replaces: W10190966) |
|
Immediately | $ 105.08 |
