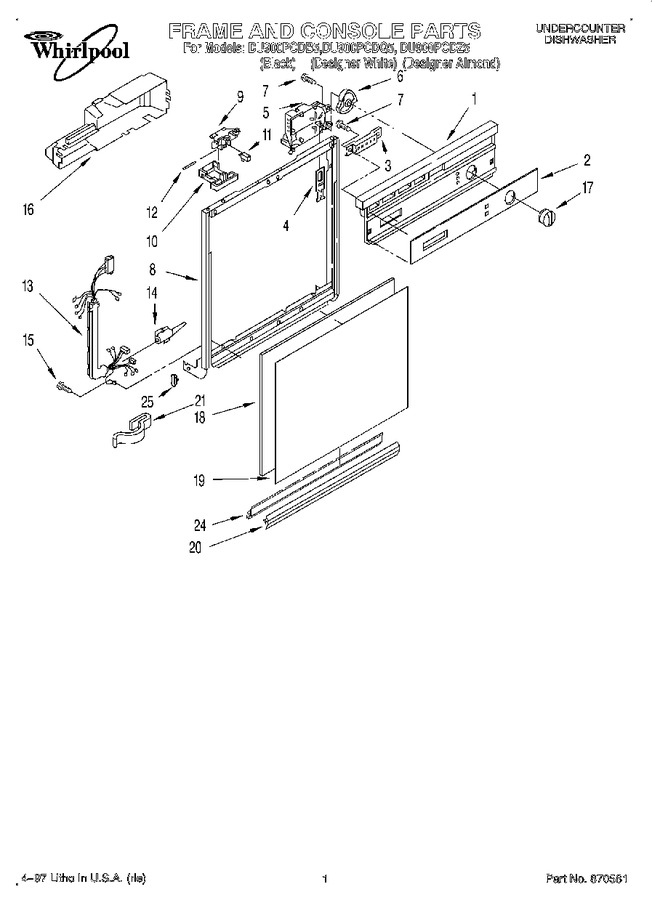

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Motor


05 - Dishrack


06 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3375275		Console (includes Item 2) (almond)		Appelez-nous	-
1	3375273		Console (includes Item 2) (black)		Appelez-nous	-
1	3375274		Console (includes Item 2) (white)		Appelez-nous	-
2	3376025		Insert, Console (white)		Appelez-nous	-
2	3376024		Insert, Console (black)		Appelez-nous	-
2	3376026		Insert, Console (almond)		Appelez-nous	-
3	3376027		Switch (black)		Appelez-nous	-
3	3376028		Switch (white)		Appelez-nous	-
3	3376029		Switch (almond)		Appelez-nous	-
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	3373626		Timer		Appelez-nous	-
6	3378124		Cam				$ 5.75
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	3374711		Door Frame (includes Item 24) (black)				$ 158.94
8	3374712		Door Frame (includes Item 24) (white)				$ 141.54
8	3374713		Door Frame (includes Item 24) (almond)		Appelez-nous	-
9	WP3380854		Bolt, Latch   (Replaces: 3370260)			Immediately	$ 66.11
10	3369457		Lever, Latch (black)				$ 5.84
10	3375061		Lever, Latch (almond)		Appelez-nous	-
10	3372232		Lever, Latch (white)		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3380435		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw   (Replaces: 3400803)				$ 7.08
16	3373367		Cover Timer		Appelez-nous	-
17	3375348		Knob, Timer (black)				$ 64.33
17	3375350		Knob, Timer (almond)		Appelez-nous	-
17	3375349		Knob, Timer (white)				$ 46.12
18	3368979		Spacer, Corrugated				$ 38.99
19	WP3369769		Panel, Front (almond/black)   (Replaces: 3369516)				$ 59.42
19	WP3369769		Panel, Front Black/white   (Replaces: 3369769)				$ 59.42
20	3374010		Retainer, Panel (black)				$ 40.68
20	3374011		Retainer, Panel (white)				$ 59.30
20	3374012		Retainer, Panel (almond)		Appelez-nous	-
21	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
24	WP3374716		Channel, Retainer (also Order Item No.20)   (Replaces: 3374716)				$ 100.22
25	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
