SELECT A DIAGRAM

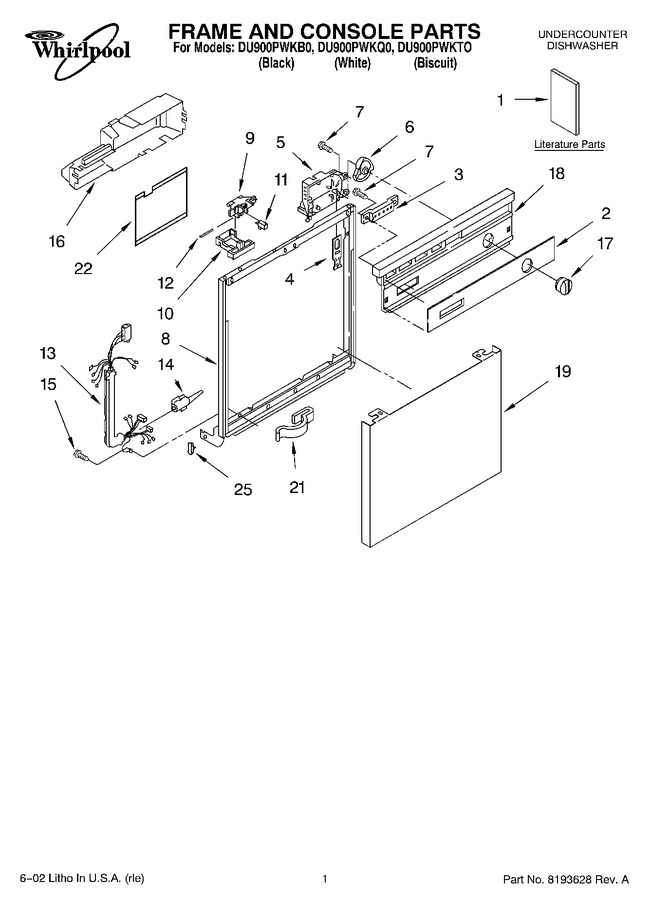

01 - Frame And Console, Literature


02 - Inner Door


03 - Tub Assenbly


04 - Pump And Motor


05 - Dishrack


06 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8275138		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT677967		Literature Parts (do-it Yourself, Manual)		Appelez-nous	-
1	LIT3385181		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3367007		Literature Parts (instructions, Installation (supplement) (locating Your Water Supply))		Appelez-nous	-
1	LIT8275369		Literature Parts (energy Guide)		Appelez-nous	-
1	LIT3385281		Literature Parts (guide, Use & Care)		Appelez-nous	-
2	8269402		Insert, Console (white)		Appelez-nous	-
2	8269401		Insert, Console (black)		Appelez-nous	-
2	8275450		Insert, Console (biscuit)		Appelez-nous	-
3	8269369		Switch, 8 Button		Appelez-nous	-
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	WP8535371		Timer   (Replaces: 8274717)				$ 399.45
6	3378124		Cam				$ 5.75
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3372231		Lever, Latch White		Appelez-nous	-
10	3369457		Lever, Latch (black)				$ 5.84
10	3375062		Lever, Latch (biscuit)				$ 37.58
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8275126		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8269526		Cover, Timer		Appelez-nous	-
17	8275308		Knob, Timer (black)				$ 75.05
17	8275310		Knob, Timer (biscuit)		Appelez-nous	-
17	8275308		Knob, Timer (white)   (Replaces: 8275309)				$ 75.05
18	8274799		Console (includes Item 2) (white)		Appelez-nous	-
18	8274798		Console (includes Item 2) (black)		Appelez-nous	-
18	3380928		Console (includes Item 2) (biscuit)		Appelez-nous	-
19	3379376		Panel Front (white)				$ 116.81
19	3379375		Panel Front (black)				$ 115.07
21	WP3400935		Clip, Harness   (Replaces: 3400935)				$ 10.20
22	3379671		Shield, Control Cover		Appelez-nous	-
25	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
