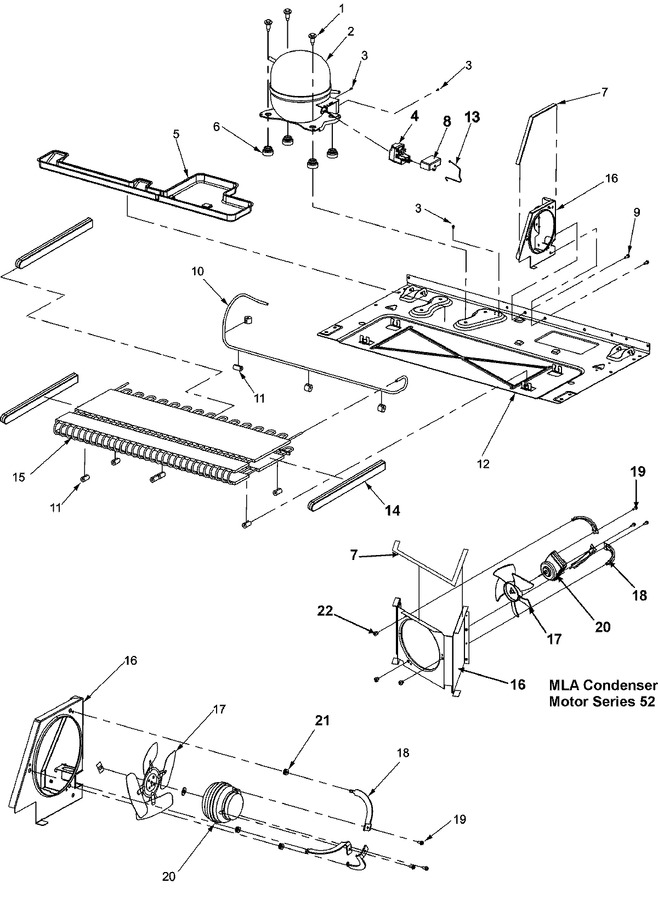

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0221523		Screw, Shldr	50	Appelez-nous	-
2	W10309990		Kit, Compressor   (Replaces: 12002633)	52		Immediately	$ 632.81
2	W10309990		Compressor   (Replaces: 67003084)	50		Immediately	$ 632.81
3	12992301		Screw, Tf   (Replaces: M0231604)	50			$ 7.32
4	W10613606		Overload/relay W/capacitor   (Replaces: 67005560)	52		Immediately	$ 86.59
4	W10613606		Overload/relay W/capacitor   (Replaces: 67003764)	50		Immediately	$ 86.59
5	67004848		Pan, Drain	50	Appelez-nous	-
6	WPW10169124		Grommet, Compressor   (Replaces: 67003493)	50		Immediately	$ 7.19
7	WP854334		Seal   (Replaces: 61003210)	50			$ 13.28
8	WP65889-4		Capacitor   (Replaces: C8931612)	50		Immediately	$ 61.14
9	67006425		Screw, Sm   (Replaces: M0238616)	50		Immediately	$ 6.95
10	WP12866903		Tube, Discharge   (Replaces: 67004700)	50		Immediately	$ 133.53
11	67005680		Grommet, Condenser	52			$ 21.05
11	67005680		Grommet, Condenser   (Replaces: 12578601)	50			$ 21.05
12	67005343		Pan, Base	52	Appelez-nous	-
12	67001512		Pan, Base	50	Appelez-nous	-
13	12576801		Strap, Bale	50	Appelez-nous	-
14	67002235		Block-eps Cond	50	Appelez-nous	-
15	67002235		Block-eps Cond	50	Appelez-nous	-
15	WP67006131		Condenser X   (Replaces: 67004682)	50			$ 366.74
16	67001090		Shroud, Condenser Fan	50	Appelez-nous	-
17	W10156818		Blade, Cond Fan   (Replaces: 67004952)	52		Immediately	$ 62.11
17	WP12587601		Blade, Cond Fan   (Replaces: 12587601)	50			$ 126.67
18	WP67004953		Bracket, Cond Motor   (Replaces: 67004953)	52			$ 68.83
18	67003644		Brkt, Ecm Cond Motor	50	Appelez-nous	-
19	67006425		Screw, Sm   (Replaces: M0238616)	50		Immediately	$ 6.95
20	W11613295		Motor, Condenser Fan   (Replaces: 67004432)	52		Immediately	$ 136.84
20	12628701		Motor, Condenser Fan (ecm)	50	Appelez-nous	-
21	WP486692		Nut, Ecm Motor   (Replaces: 12632601)				$ 7.82
22	61004743		Grommet, Bracket	52			$ 5.51
23	67004955		Harness, Mc	52	Appelez-nous	-
NI	67004324		Harness-mc	50	Appelez-nous	-
