SELECT A DIAGRAM

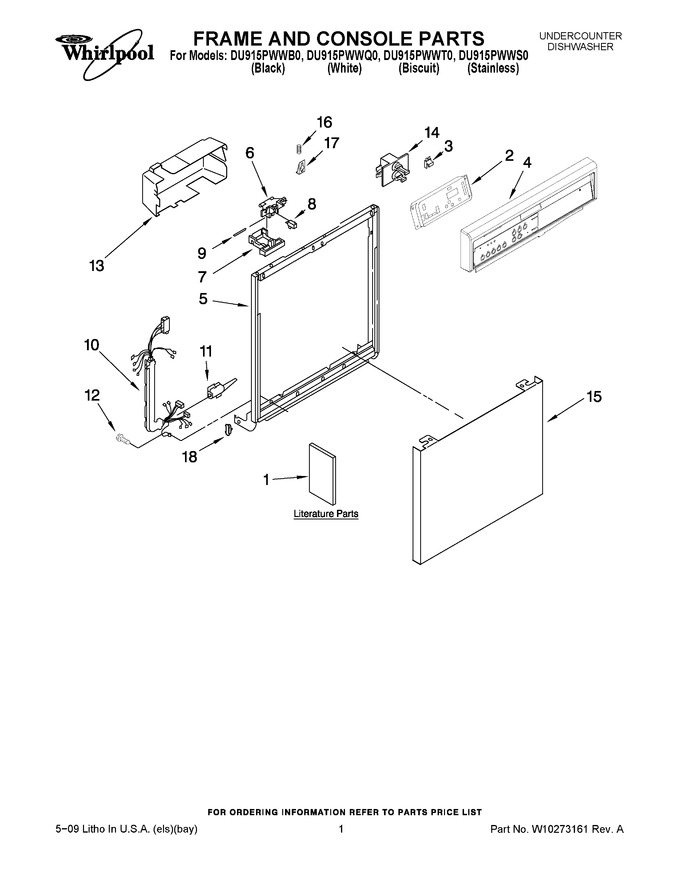

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Motor Parts


05 - Upper Dishrack And Water Feed Parts


06 - Lower Dishrack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10130985		Guide, Use & Care English/french		Appelez-nous	-
1	W10133160		Guide, Use & Care Spanish		Appelez-nous	-
1	8535431		Tech Sheet English/french		Appelez-nous	-
1	W10254799		Guide, Energy		Appelez-nous	-
1	8535436		Instructions, Installation		Appelez-nous	-
2	W10039780		Control, Electronic				$ 207.01
3	675813		Fuse, Thermal   (Replaces: 3376359)			Immediately	$ 48.05
4	W10101980		Console (includes Insert & Active Overlay) (biscuit)		Appelez-nous	-
4	W10101960		Console (includes Insert & Active Overlay) (black)				$ 187.99
4	W10101970		Console (includes Insert & Active Overlay) (white)				$ 194.75
5	9743028		Door Frame (black)				$ 62.19
6	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
7	3369457		Lever, Latch (black)				$ 5.84
7	3372231		Lever, Latch White		Appelez-nous	-
7	3375062		Lever, Latch (biscuit)				$ 37.58
8	3369325		Switch		Appelez-nous	-
9	3368955		Pin, Switch				$ 7.75
10	8573190		Harness And Protector				$ 114.50
11	3376405		Elbow, Harness				$ 14.02
12	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
13	8051304		Cover, Timer		Appelez-nous	-
14	3374501		Motor, Dual				$ 45.99
15	3379375		Panel Front (black)				$ 115.07
15	3379376		Panel Front (white)				$ 116.81
15	9743581		Panel, Front (stainless)		Appelez-nous	-
15	8054178		Panel, Front (biscuit)				$ 111.70
16	675782		Spring, Door Catch   (Replaces: 3379358)				$ 9.90
17	675782		Catch, Door   (Replaces: 3379357)				$ 9.90
18	WP3373234		Bearing, Spring   (Replaces: 3373234)				$ 11.01

    View Diagram in Separate Window       Print Part List
