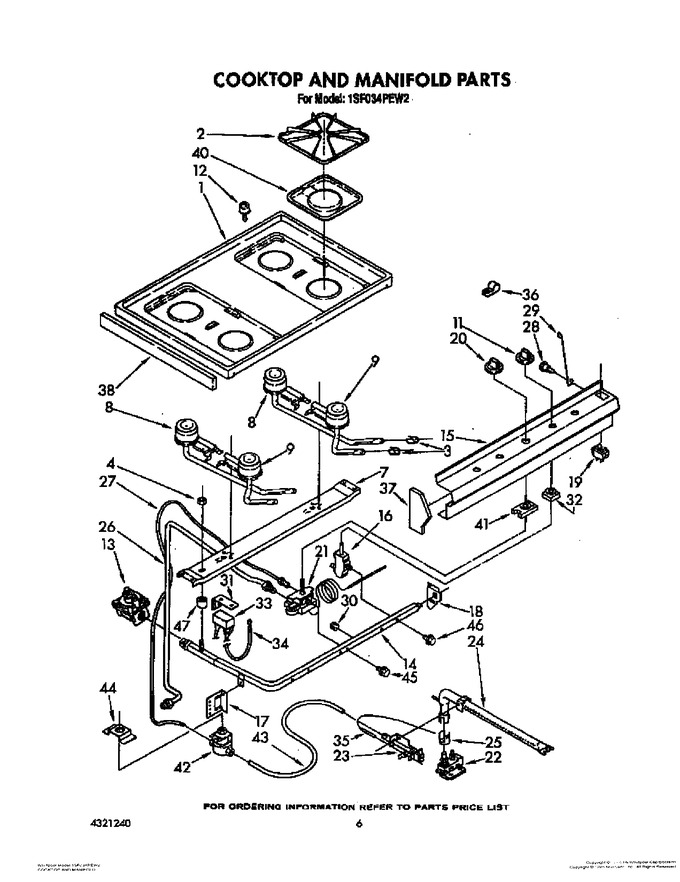

05 - Cooktop And Manifold, Lit/optional


06 - Internal Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4315732		Cooktop (almond)		Appelez-nous	-
1	4315731		Cooktop (white)		Appelez-nous	-
2	4157196		Grate (4)		Appelez-nous	-
3	4157074		Shutter, Air (4)		Appelez-nous	-
4	4157075		Nut, Hex		Appelez-nous	-
7	4315733		Support, Burner		Appelez-nous	-
7	4157121		Screw, 10-12 X 3/8 (4)		Appelez-nous	-
8	4157206		Burner, Rear (2)		Appelez-nous	-
8	4157121		Screw, 10-12 X 3/8 (2)		Appelez-nous	-
9	4157205		Burner, Front (2)		Appelez-nous	-
9	4157121		Screw, 10-12 X 3/8 (2)		Appelez-nous	-
11	WP4179282		Knob, Burner (4)   (Replaces: 4315148)				$ 22.83
12	4157115		Speed Clip (4)		Appelez-nous	-
12	4314933		Locator Stud (2)		Appelez-nous	-
13	4157084		Regulator, Pressure		Appelez-nous	-
14	WP308685		Screw, 10-12 X 1/2 (1)   (Replaces: 4157111)			Immediately	$ 7.87
14	4315734		Manifold		Appelez-nous	-
15	4315735		Panel, Manifold		Appelez-nous	-
16	4179356		Valve, 180~ (4) (includes Ill. No. 46)		Appelez-nous	-
17	4157088		Support, Manifold (l.h.)		Appelez-nous	-
17	WP308685		Screw, 10-12 X 1/2 (3)   (Replaces: 4157111)			Immediately	$ 7.87
18	4179357		Support, Manifold (r.h.)		Appelez-nous	-
18	WP308685		Screw, 10-12 X 1/2 (2)   (Replaces: 4157111)			Immediately	$ 7.87
19	4315435		Switch, Oven Light		Appelez-nous	-
20	WPY07506601		Knob, Thermostat   (Replaces: 4179283)				$ 71.30
21	4179354		Thermostat (includes Ill. No. 45)		Appelez-nous	-
22	4157094		Valve, Safety		Appelez-nous	-
22	WP3387230		Screw, 10-12 X 3/4 (2)   (Replaces: 4157125)			Immediately	$ 8.54
23	4157126		Screw, 10-24 X 1/4 (1)		Appelez-nous	-
23	4157179		Pilot		Appelez-nous	-
24	4320371		Burner, Oven		Appelez-nous	-
25	4157097		Shutter, Burner		Appelez-nous	-
26	4157098		Tubing, (thermostat To Safety Valve)		Appelez-nous	-
27	4179104		Tubing, (thermostat To Solenoid)		Appelez-nous	-
28	4157018		Screw		Appelez-nous	-
29	4157010		Rod, Support		Appelez-nous	-
30	W10295523		Plug, Pipe 1/8``   (Replaces: 4157167)		Appelez-nous	-
31	4157171		Plate, Module		Appelez-nous	-
32	WP4157180		Switch, Valve   (Replaces: 4157180)				$ 119.66
33	4179297		Module, Spark		Appelez-nous	-
34	4179200		Ignitor (r.h.)		Appelez-nous	-
34	4179201		Ignitor (l.h.)		Appelez-nous	-
35	4315316		Ignitor, Oven		Appelez-nous	-
36	4157185		Strain Relief		Appelez-nous	-
37	4157187		Endcap (r.h.)		Appelez-nous	-
37	4157186		Endcap (l.h.)		Appelez-nous	-
38	4314888		Trim, Cooktop (2)		Appelez-nous	-
40	WP786333		Bowl, Chrome (4)   (Replaces: 4157194)				$ 20.75
41	WP878009		Switch, Ignitor   (Replaces: 4157210)				$ 120.61
42	4179103		Valve, Solenoid		Appelez-nous	-
43	4179105		Tubing, (solenoid To Burner Pilot)		Appelez-nous	-
44	4179110		Bracket, Solenoid		Appelez-nous	-
45	4314816		Bolt, Thermostat Mounting (2)		Appelez-nous	-
46	4314817		Bolt, Valve Mounting		Appelez-nous	-
47	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
47	WPW10208653		Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514)			Immediately	$ 55.47
47	WPW10208653		Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132)			Immediately	$ 55.47
47	4315207		Spacer, Manifold		Appelez-nous	-
	LIT4315636		Guide, Use & Care		Appelez-nous	-
	LIT4321240		List, Repair Parts		Appelez-nous	-
	LIT4315637		Wiring Diagram		Appelez-nous	-
	LIT4315633		Instuctions, Installation		Appelez-nous	-
