SELECT A DIAGRAM

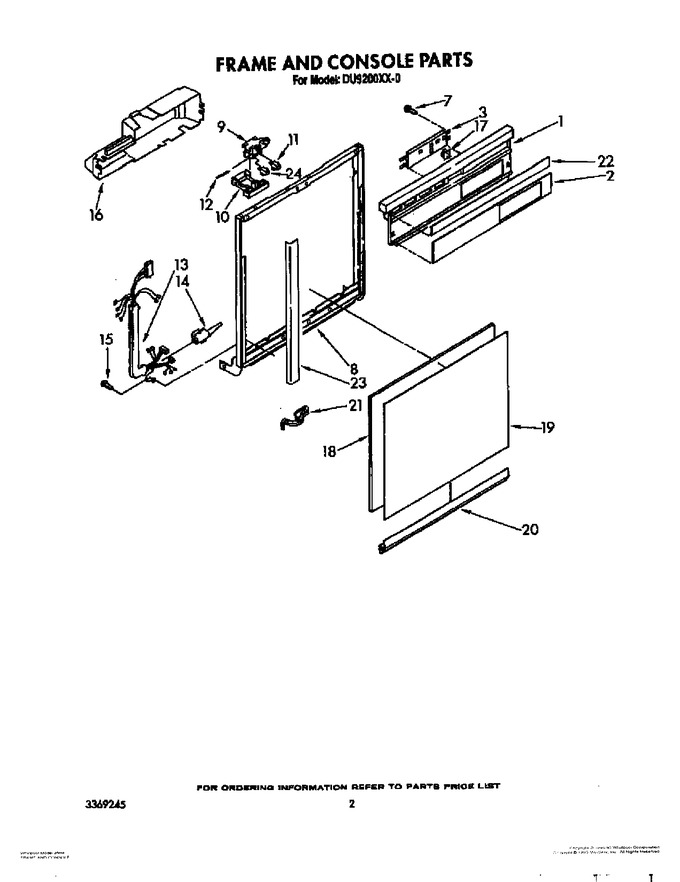

02 - Frame And Console


03 - Inner Door


04 - Tub Assembly


05 - Pump And Motor


06 - Dishrack


07 - Optional, Miscellaneous


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3369822		Console (includes Item 2)		Appelez-nous	-
2	3369813		Insert, Console		Appelez-nous	-
3	3369362		Switch, Control		Appelez-nous	-
7	WP304231		Screw, 8-18 X 1/2 (6)   (Replaces: 304231)			Immediately	$ 8.14
8	3368900		Door Frame		Appelez-nous	-
9	WP3370964		Bolt, Latch   (Replaces: 3369502)				$ 94.29
10	3369503		Lever, Latch				$ 5.83
11	3369325		Switch, (2)		Appelez-nous	-
12	3369504		Pin, Switch (2)				$ 7.41
13	3369765		Harness And Protector (includes Item 14)		Appelez-nous	-
14	3368977		Elbow, Harness		Appelez-nous	-
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 9412221)				$ 7.08
16	3369192		Cover, Timer		Appelez-nous	-
17	3369417		Motor, Dual		Appelez-nous	-
18	3368979		Spacer, Corrugated				$ 38.99
19	WP3369769		Panel, Front (almond/black)   (Replaces: 3369516)				$ 59.42
20	3370441		Retainer, Panel				$ 39.48
21	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
22	3369598		Trim, Console		Appelez-nous	-
23	3369592		Trim (2)		Appelez-nous	-
24	3369530		Switch (1)		Appelez-nous	-
