SELECT A DIAGRAM

01 - Frame And Console


02 - Inner Door

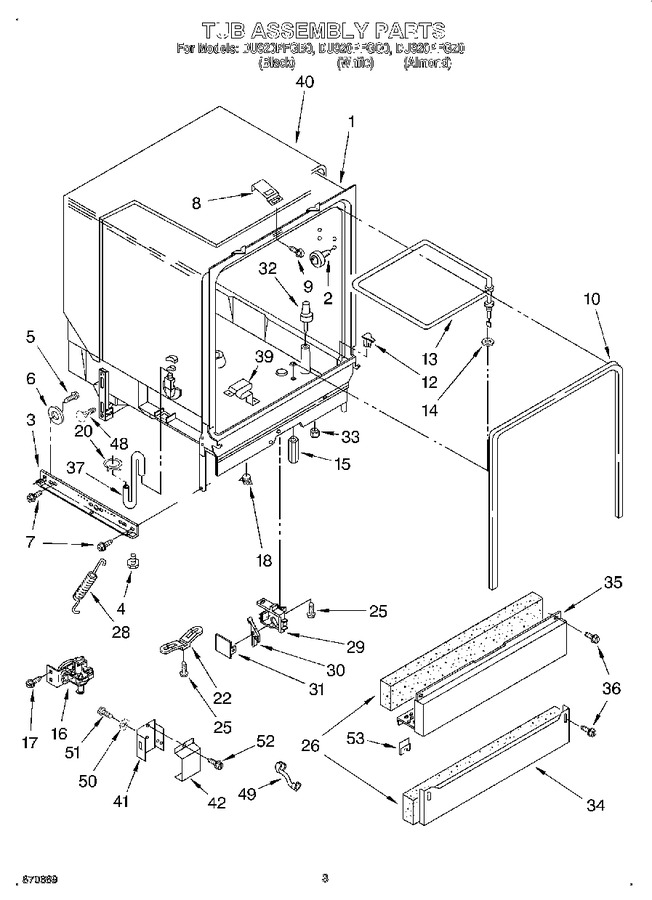

03 - Tub Assembly


04 - Pump & Motor


05 - Dishrack


06 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3379349		Tub Assembly		Appelez-nous	-
2	3380371		Tub, Wheel Assembly (8)				$ 17.44
3	3368933		Runner (2)				$ 15.85
4	8193716		Leveler (2)   (Replaces: 3376439)			Immediately	$ 88.96
5	3370389		Screw, Shoulder				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw,   (Replaces: 343641)			Immediately	$ 8.47
8	3374719		Plate, Latch		Appelez-nous	-
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3376927)			Immediately	$ 74.12
12	WP8528862		Deflector (2)   (Replaces: 3378140)				$ 63.90
13	WPW10082896		Heater (includes Item 14)   (Replaces: 3379487)				$ 141.38
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.55
15	3378706		Nut (2) (heater Terminal)		Appelez-nous	-
16	W10844024		Water Valve   (Replaces: 3378779)			Immediately	$ 96.30
17	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
18	WP661566		Thermostat, Hi-limit   (Replaces: 3369777)			Immediately	$ 31.28
20	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.82
22	W10539489		Bracket, Thermostat   (Replaces: 3378595)				$ 20.14
25	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
26	3374767		Insulation, Toe & Access Panel		Appelez-nous	-
28	WP3379383		Spring, Door (2)   (Replaces: 3379383)			Immediately	$ 25.30
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP3376397		Float & Washer Assembly   (Replaces: 3376397)				$ 108.64
33	717488		Nut				$ 12.83
34	9742870		Panel, Toe (includes No.26) (almond)		Appelez-nous	-
34	3375423		Panel, Toe (includes No.26) (black)		Appelez-nous	-
34	9742869		Panel, Toe (includes No.26) (white)		Appelez-nous	-
35	3379917		Panel, Access (black)		Appelez-nous	-
35	3379919		Panel, Access (almond)		Appelez-nous	-
35	3379918		Panel, Access (white)				$ 21.91
36	WP302868		Screw   (Replaces: 302868)			Immediately	$ 8.18
37	3369414		Hose, Inlet		Appelez-nous	-
39	3379740		Support, Heater				$ 51.56
40	W11086533		Shield, Sound   (Replaces: 8055335)			Immediately	$ 31.30
41	3378131		Terminal Box		Appelez-nous	-
42	300068		Cover Assembly Terminal Box				$ 30.14
48	WP304666		Retainer, Push (2)   (Replaces: 304666)				$ 29.45
49	3370307		Relief, Strain		Appelez-nous	-
50	WP3378128		Washer   (Replaces: 3378128)				$ 11.81
51	WP3400014		Screw   (Replaces: 3400014)				$ 8.24
52	3369138		Screw				$ 5.81
53	3378123		Clip, Grounding				$ 7.79

    View Diagram in Separate Window       Print Part List
