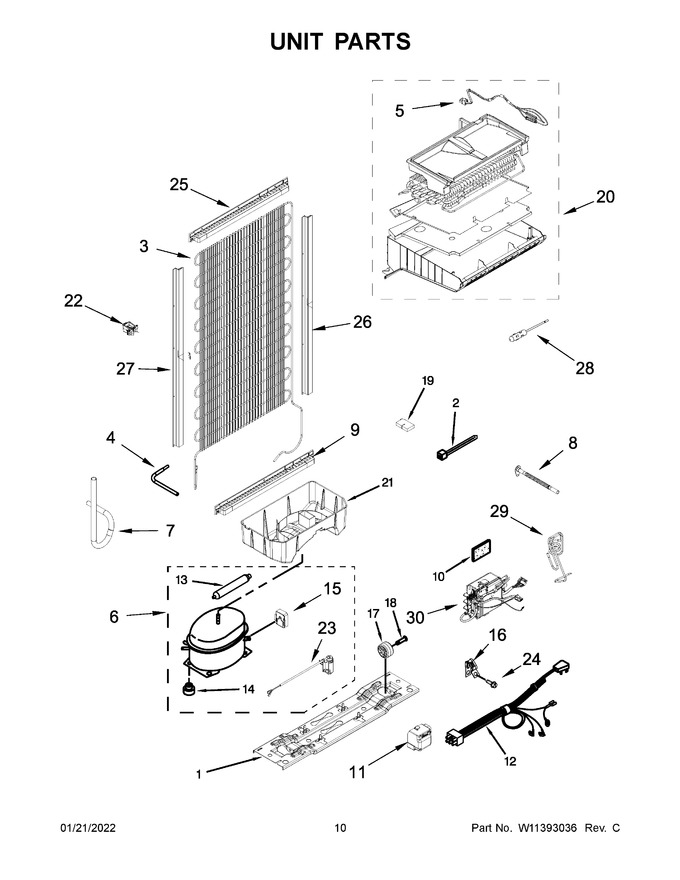

06 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11407714		Plate, Compressor Mounting				$ 96.93
2	WPW10339879		Tie, Wire   (Replaces: 2263990)				$ 8.30
3	W11512410		Condenser (also Order The Following Lokring Parts)   (Replaces: W11387135)				$ 192.93
4	W11661102		Tube, Process   (Replaces: 2174739)				$ 30.46
5	W11466255		Jumper, Thermal Fuse			Immediately	$ 79.57
6	W11370574		Compressor (also Order The Following Lokring Parts)   (Replaces: W11225065)			Immediately	$ 436.20
7	W11403094		Suction Tube, Static   (Replaces: W11383830)				$ 64.41
8	W11512414		Extension, Drain Tube   (Replaces: W11353353)				$ 78.54
9	W11264207		Condenser, Bottom Protection				$ 86.70
10	W11553819		Insulation, Sound   (Replaces: 2215468)			Immediately	$ 14.77
11	W11342284		Cover, Terminal Board				$ 102.90
12	W11248029		Assembly, Power Cord				$ 173.32
13	W11490399		Drier (also Order The Following Lokring Parts)   (Replaces: W11107829)			Immediately	$ 30.35
14	WPW10169124		Grommet   (Replaces: 10835903)				$ 7.55
15	W11643623		Device, Start   (Replaces: W11387715)				$ 72.97
16	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 22.12
17	WPW10475495		Roller   (Replaces: W10475495)			Immediately	$ 32.06
18	W11594405		Axle, Rivet   (Replaces: 2179826)			Immediately	$ 19.12
19	W10261299		Wedge, Evaporator		Appelez-nous	-
20	W11394622		Evaporator Assembly (with Defrost Heater) (also Order The Following Lokring Parts)   (Replaces: W11196404)			Immediately	$ 376.12
21	W11559685		Tray, Water   (Replaces: W11461578)			Immediately	$ 99.95
22	WP326020544		Support, Condenser   (Replaces: 326020544)				$ 10.86
23	W11652060		Assembly, Capacitor   (Replaces: W11358319)			Immediately	$ 94.37
24	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
25	W11264206		Condenser, Top Protection				$ 86.61
26	W11377937		Condenser, Side Protection (right)			Immediately	$ 88.10
27	W11377938		Condenser Side Protection (left)				$ 85.11
28	ARI8DB29D11366173399AE5CDFF38CE40A4		Thermistor (not Serviced)		Appelez-nous	-
29	W11487479		Coil, Discharge (also Order The Following Lokring Parts)   (Replaces: W11394373)		Appelez-nous	-
30	W11487480		Box, Control   (Replaces: W11290670)			Immediately	$ 239.31
20A	W11504423		8/2 Nr Al 00 (capillary Tube To Evaporator)			Immediately	$ 29.57
20B	W11506620		(8-nk-al-00) (capillary Tube To Evaporator)   (Replaces: W10897195)			Immediately	$ 32.10
20C	W11225184		(8-mm-200-mm) (capillary Tube To Evaporator)			Immediately	$ 71.27
20D	W11504419		(8/7-nr-al-00) (suction Line To Evaporator)   (Replaces: W11401413)			Immediately	$ 35.19
20E	W11506620		(8-nk-al-00) (capillary Tube To Evaporator)   (Replaces: W10897195)			Immediately	$ 32.10
20F	W11225184		(8-mm-200-mm) (capillary Tube To Evaporator)			Immediately	$ 71.27
29A	W11504431		7/5-nr-ms-00 High Pressure Line To Compressor   (Replaces: W10895750)			Immediately	$ 27.13
29B	W11504445		5/4-nr-ms-00 (heat Loop To Coil Discharge)   (Replaces: W10896689)			Immediately	$ 28.92
3A	W11504445		5/4 Nr Ms 00 (heat Loop To Condenser)			Immediately	$ 28.92
3B	W11506623		5/5-nk-ms-00 (inlet To Drier)   (Replaces: W10896710)			Immediately	$ 22.00
6A	W11504415		(8.5/8-nr-ms-00) (suction Tube To Compressor)   (Replaces: W10895713)			Immediately	$ 25.89
6B	W11504420		8/6-nr-ms-00 (suction Tube To Compressor)   (Replaces: W10895723)			Immediately	$ 25.88
6C	W11504431		7/5-nr-ms-00 High Pressure Line To Compressor   (Replaces: W10895750)			Immediately	$ 27.13
6D	W11506635		Tube, Charging (1/4" W/ Schrader Valve)			Immediately	$ 37.03
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
