01 - Cover Sheet

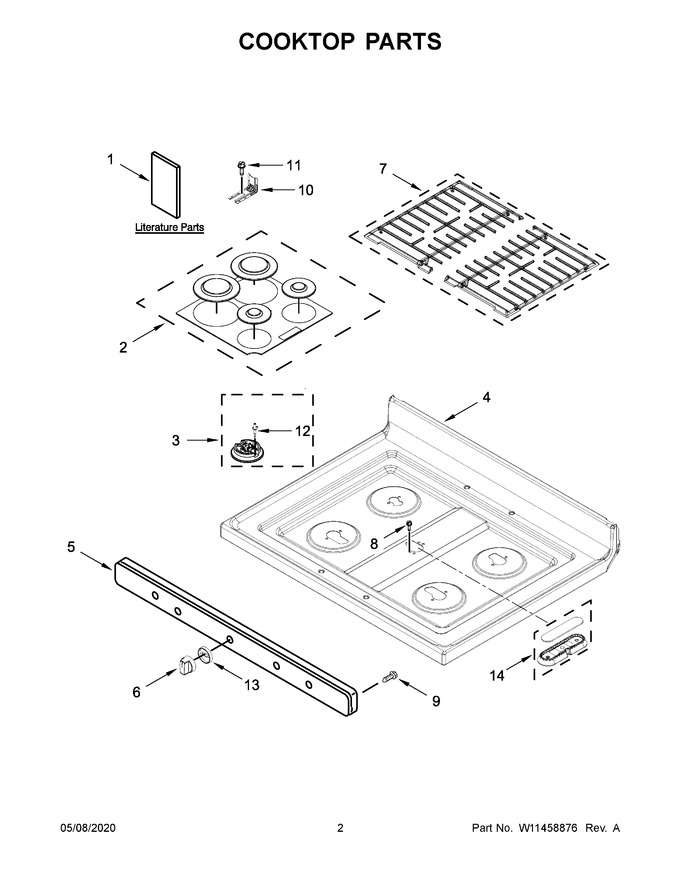

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11404103 | Installation Instructions |
|
- | |||||
| 2 | W11834859 | Kit, Burner Cap (black) (Replaces: W11352138) |
|
- | |||||
| 3 | W11435630 | Spreader, Flame (left Front & Right Front) (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 4 | W11454367 | Cooktop (black) (Replaces: W11418086) |
|
Immediately | $ 435.20 | ||||
| 5 | W11028196 | Panel, Manifold (stainless) (Replaces: W10861559) |
|
- | |||||
| 6 | W11101439 | Knob, Control (stainless) (Replaces: W10858251) |
|
$ 82.82 | |||||
| 7 | W11101497 | Kit, Grate (black) (Replaces: W10911970) |
|
$ 364.92 | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | W11839019 | Anti-tip Bracket (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 11 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| 12 | W11453920 | Electrode (left Front, Right Front, Right Rear) (center) (Replaces: W11428858) |
|
$ 64.35 | |||||
| 13 | W11375481 | Bezel (stainless) (Replaces: W11042485) |
|
$ 59.29 | |||||
| 14 | W11435660 | Spreader, Flame (Replaces: W11367086) |
|
Immediately | $ 98.56 | ||||
| 12A | W11453940 | Electrode (left Rear) (Replaces: W11428831) |
|
$ 64.46 | |||||
| 1A | W11404075 | Use And Care Guide |
|
- | |||||
| 1B | W10842032 | Sheet, Tech |
|
- | |||||
| 1C | W11032799 | Diagram, Wiring |
|
- | |||||
| 3A | W11435659 | Spreader, Flame (left Rear & Center) (Replaces: W11352020) |
|
$ 84.85 | |||||
| 3B | W11435657 | Spreader, Flame (right Rear) (Replaces: W11352021) |
|
$ 84.43 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10842520 | Harness, Main |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 216.55 | |||||
| NI | W11233074 | Harness, Igniter (includes Switches) (Replaces: W10811691) |
|
$ 190.30 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- |
