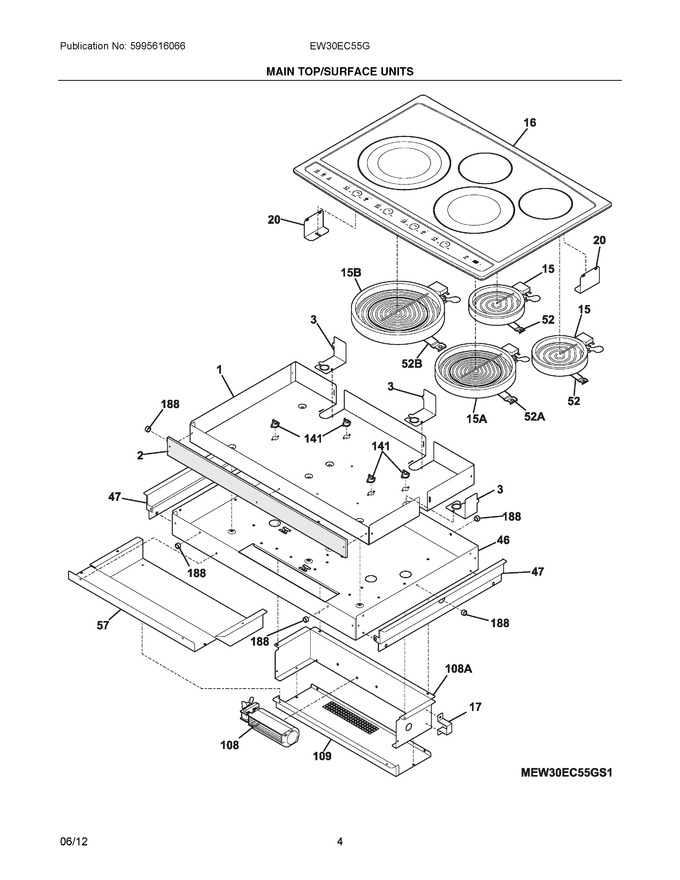

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318354114		Shield, Heat		Appelez-nous	-
2	318346006		Insulation, Front		Appelez-nous	-
3	318371403		Cover, Deflector		Appelez-nous	-
15	318178110		Element, Surface, 6", 1200 W, (2)   (Replaces: 318198830)			Immediately	$ 136.51
16	318384300		Maintop Assembly, Glass/steel, White, W/touch Control				$ 932.20
17	318367801		Bracket, Cable		Appelez-nous	-
20	318121902		Bracket, Retainer				$ 52.25
46	318354016		Box, Burner		Appelez-nous	-
47	318345145		Deflector, Air		Appelez-nous	-
52	318122006		Spring, Element Mtg, Small				$ 73.61
57	318381600		Box, Service		Appelez-nous	-
108	318073027		Motor, Fan		Appelez-nous	-
109	318380810		Cover, Blower		Appelez-nous	-
141	318005225		Switch, Thermal Cutout				$ 24.00
188	318531702		Spacer, (6)   (Replaces: 318014110)				$ 11.03
108A	318380700		Bracket, Blower		Appelez-nous	-
15A	5304533520		Element, Surface, 6"/9", 3000w, Dual Radiant   (Replaces: 316465001)			Immediately	$ 100.15
15B	316560402		Element, Surface, Triple, 6/9/12   (Replaces: 316216702)				$ 329.18
52A	318122010		Spring, Element Mtg, 3000w				$ 69.46
52B	318122011		Spring, Element Mtg, 1200w/1800w				$ 69.04
NI	134178901		Screw, 8 X 0.500   (Replaces: 5303211311)				$ 16.54
NI	5303300265		Screw, 8-18 X 1/2, (4)				$ 16.85
NI	5304415832		Screw, 8-18 X 0.406		Appelez-nous	-
NI	5304464884		Tape, Neopren, 3/4 X 3/32		Appelez-nous	-
NI	08016432		Screw, Truss Head, 8-18 X 0.375		Appelez-nous	-
NI	5303311306		Screw, 8-18 X 0.375, (8)		Appelez-nous	-
NI	318199485		Harness, Wiring, Main		Appelez-nous	-
NI	316459400		Pad, Cleaning		Appelez-nous	-
NIA	318231855		Harness, Wiring, Thermostat		Appelez-nous	-
NIA	131202300		Screw, 8 X 5/8, (6)   (Replaces: 3131048)			Immediately	$ 14.96
NIB	5303308450		Screw, 8 X 0.375, (10)		Appelez-nous	-
