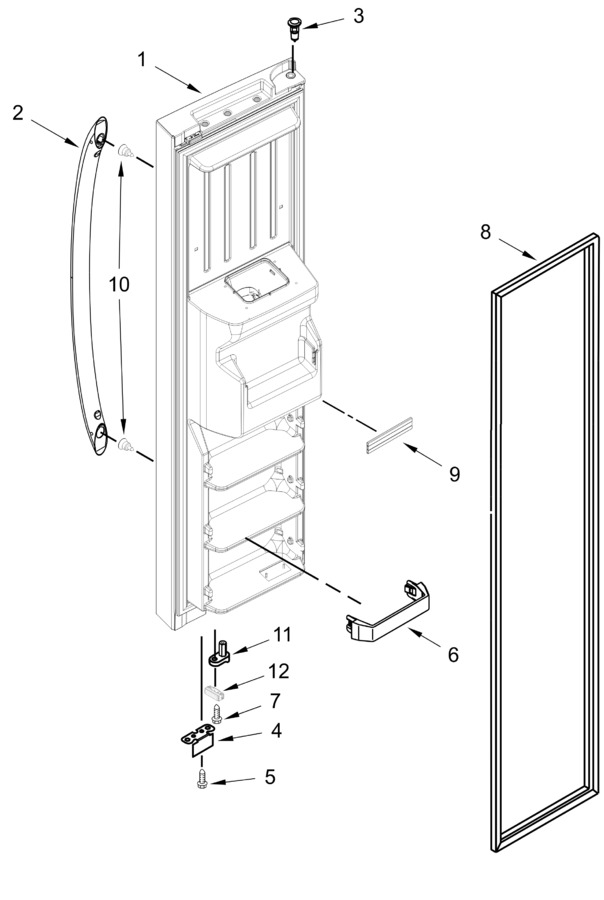

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW11026364		Door Assembly (black, Includes Door Gasket)   (Replaces: W11026364)				$ 1,243.17
2	W11450221		Handle Assembly (black)   (Replaces: W11289638)				$ 189.65
3	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
4	W11557261		Bracket, Door Stop (black)   (Replaces: W10900531)			Immediately	$ 18.67
5	WP98008545		Screw (black)   (Replaces: W10308487)				$ 18.60
6	WP2309718		Trivet   (Replaces: 2309718)				$ 61.49
7	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
8	2159082		Gasket, Door (black)   (Replaces: W10912133)				$ 332.49
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 24.27
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
11	W11661926		Cam, Thimble   (Replaces: W10900532)				$ 14.02
12	W10407187		Bumper, Door (black)				$ 48.34
